Aluminum Shoring Prop
Home / Products / Aluminum Shoring Prop / Aluminum Shoring Prop
We do produce various types of aluminum shoring props. The working height can be from 0.8m-6.25m. The aluminum shoring prop system combines lightweight handling with high structural strength, making it a preferred solution for modern construction projects that require fast installation and high efficiency.
Compared with traditional steel props, aluminum shoring props significantly reduce lifting weight, improve on-site handling efficiency, and provide excellent corrosion resistance for repeated use in construction environments.

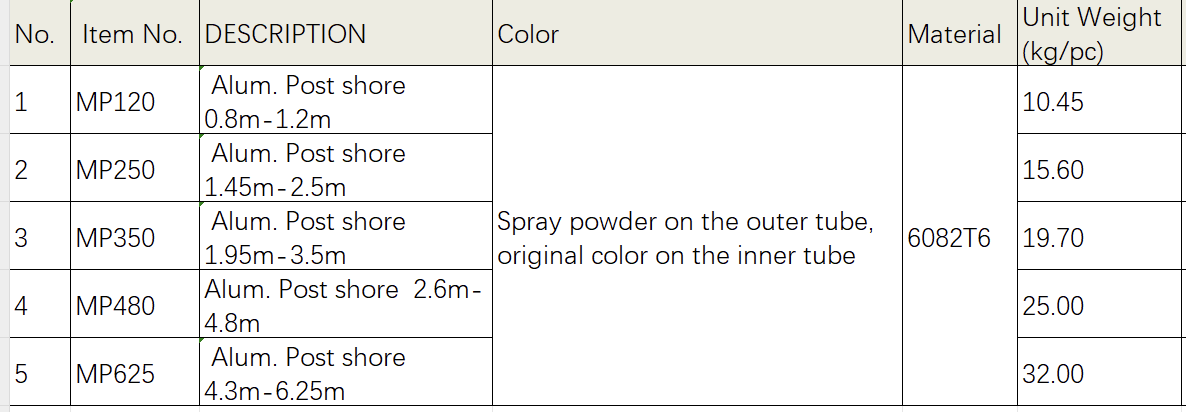

Aluminum Shoring Prop Specifications
| Item | Specification |
|---|---|
| Product Name | Aluminum Shoring Prop |
| Material | 6061-T6 / 6082-T6 Aluminum Alloy |
| Tube Diameter | Ø48mm – Ø76mm (custom available) |
| Height Range | 1.5m – 5.5m |
| Adjusting Type | Inner & Outer Tube Telescopic |
| Surface Treatment | Anodized / Mill Finish |
| Load Capacity | Light to Heavy Duty (project based) |
| Application | Slab / Beam / Formwork Support |
| Standard | EN1065 / EN12810 / EN12811 |
| Packaging | Steel pallet / bundle packing |
| MOQ | 100 sets |
| Delivery Time | 15–30 days |
| OEM & ODM | Available |
Product Description
An aluminum shoring prop is an adjustable vertical support component made from high-strength aluminum alloy, used to support concrete slabs, beams, and formwork systems during construction.
It is also commonly known as:
Aluminum Adjustable Prop
Aluminum Support Prop
Aluminum Telescopic Prop
Aluminum Formwork Prop
Aluminum Construction Shoring Prop
These props are widely used in slab formwork systems, aluminum formwork systems, and modular construction projects.
We do produce various types of aluminum shoring props. The working height can be from 0.8m-6.25m.
These props are light in weight,quick to assemble, and easy to use.
They are compatible with most accessories of other formworks and slabs.
The finished of outer tube can be powder coating, different colors are available.
High load-bearing capacity
Fewer individual props per m² through permissible leg loads of up to 100 kN (according to type test)
Well thought-out details
With self-cleaning thread, trendsetting Adjusting Nut and continuous adjustability
Time-saving length adjustment
The integrated measuring tape on the inner tube shows the complete length of the prop
Practical wedge connection

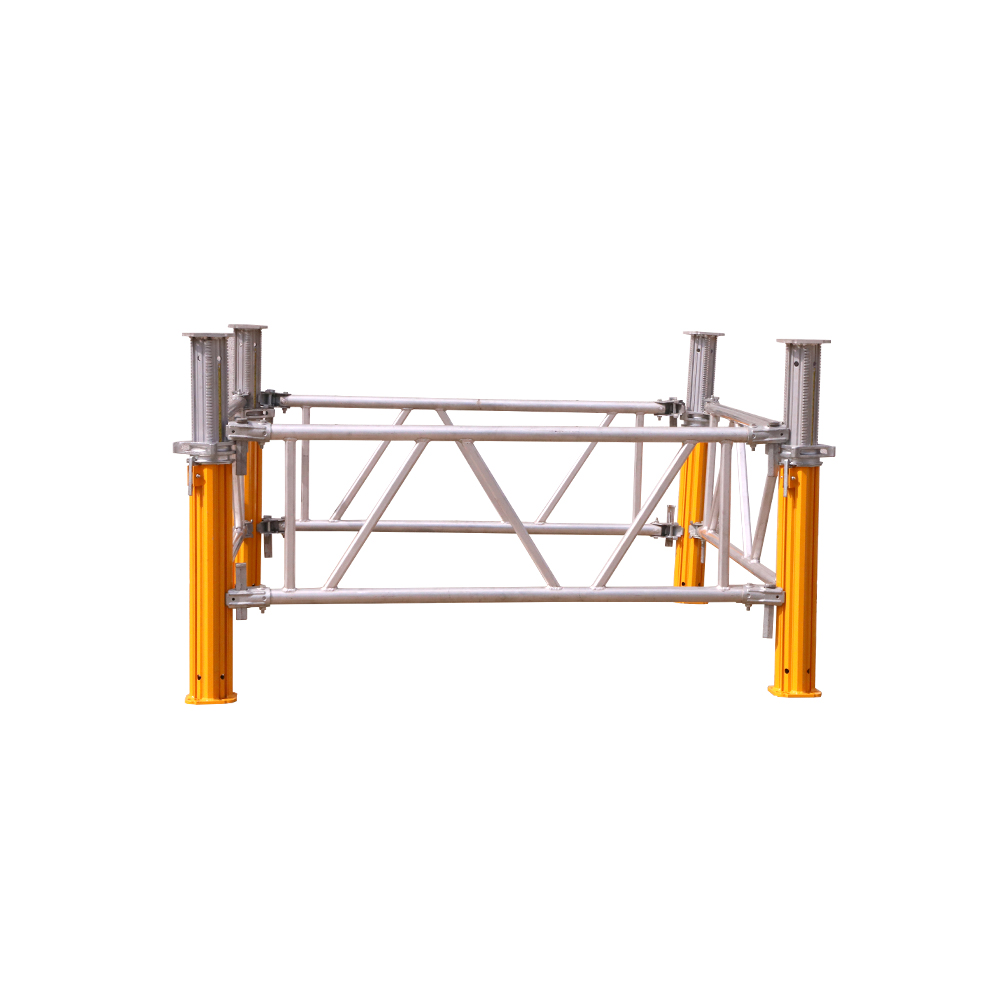

Multifunctional MRK Frame without any time-consuming bolted connections & bottom plates. High strength pin & handle rod allowing for fine adjustment.
Built-in measuring tape
Continuous, self-cleaning, quadruple thread
Nut with 4 robust lowering cams
Possibility of using tie rod
Outer tube ECC powder coated
Profile is solid and elastic = very robust
Anti-pinch safety device integrated in the system
Compared to steel props, aluminum props significantly reduce worker fatigue and improve handling efficiency.
Telescopic design allows quick adjustment and locking, reducing construction time.
Stable locking system ensures reliable vertical support during concrete pouring.
Aluminum material eliminates rust issues common in steel props.
Lightweight structure reduces logistics and shipping costs.
Aluminum shoring props are widely used in:
High-rise building slab support
Bridge deck construction
Tunnel engineering
Residential building projects
Commercial construction
Precast concrete systems
Aluminum formwork support systems
They are especially popular in projects requiring fast-cycle construction and repeated reuse.
DYNAST provides full customization services for global customers.
Custom height range
Custom tube diameter
Load capacity adjustment
OEM logo marking
Special surface finish
Packaging customization
Engineering drawing production
Lightweight but high strength
Corrosion-resistant aluminum alloy
Fast assembly and adjustment
Reusable and cost-effective
OEM customization available
Stable export quality
Competitive factory pricing
Professional engineering support
Looking for a reliable Aluminum Shoring Prop manufacturer or aluminum formwork support system supplier? Contact us!
