Cuplock Scaffolding System
Home / Products / Cuplock Scaffolding System / Cuplock scaffolding diagonal clamp

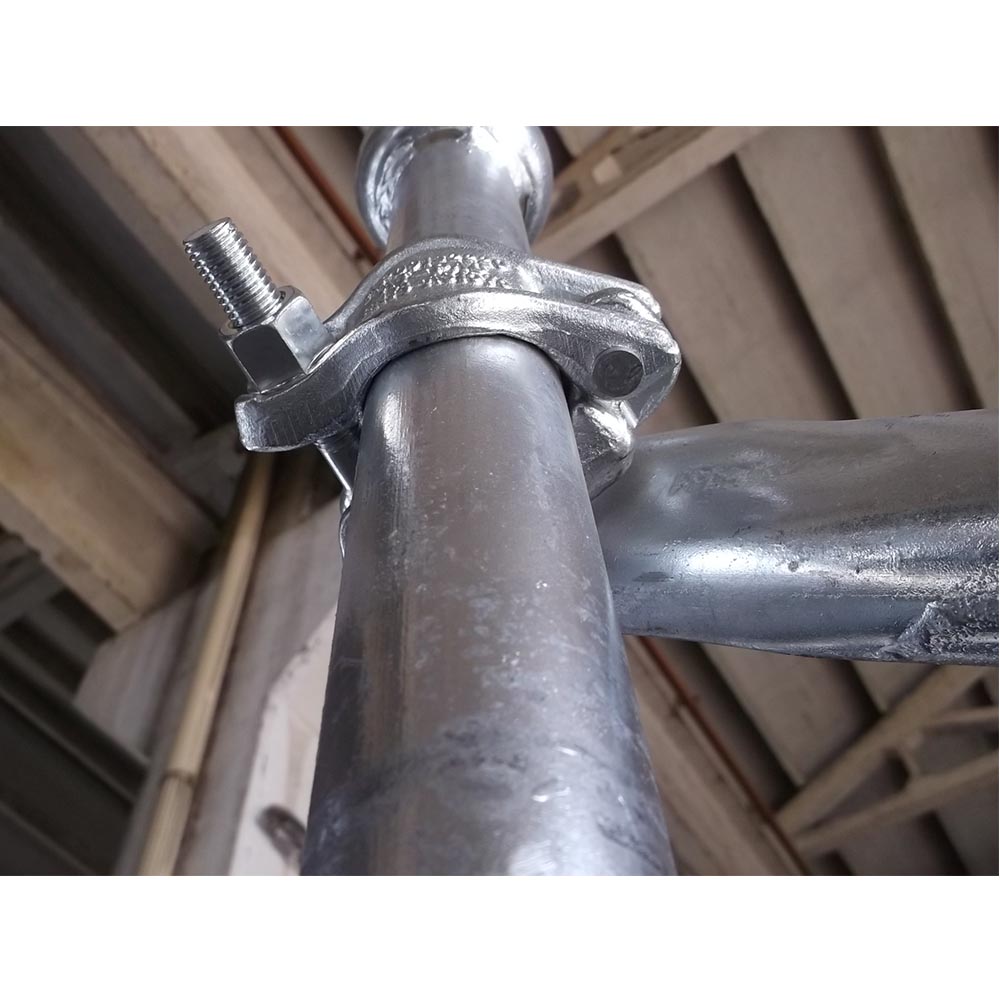

Insert the swivel ledger blades at both ends of the cuplock diagonal into the bottom cup of cuplock standard. Press and rotate the top cups, and use the stop pin to fix the top cups.
Product Size
| Diagonal clmap/ Swivel clamp brace | ||||
| Product | Bay length | Weight | ||
| REF No. | Description | Meters | Inches | KG |
| SCB5 | Swivel clamp brace 5' | 1.52 | 60 | 9.10 |
| SCB7 | Swivel clamp brace 7' | 2.13 | 84 | 10.50 |
| SCB8 | Swivel clamp brace 8' | 2.43 | 96 | 11.40 |
| SCB10 | Swivel clamp brace 10' | 3.05 | 120 | 13.00 |
Product Description
Insert the swivel ledger blades at both ends of the cuplock diagonal into the bottom cup of cuplock standard. Press and rotate the top cups, and use the stop pin to fix the top cups.

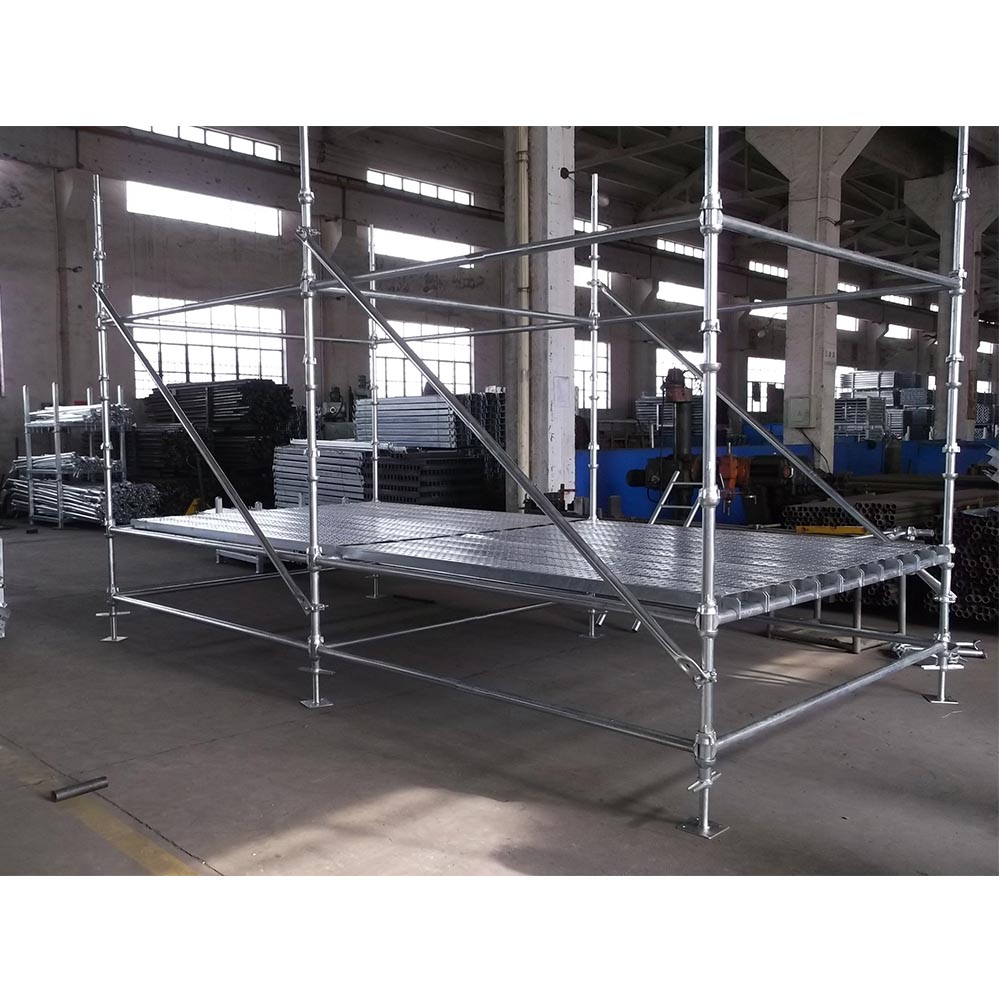

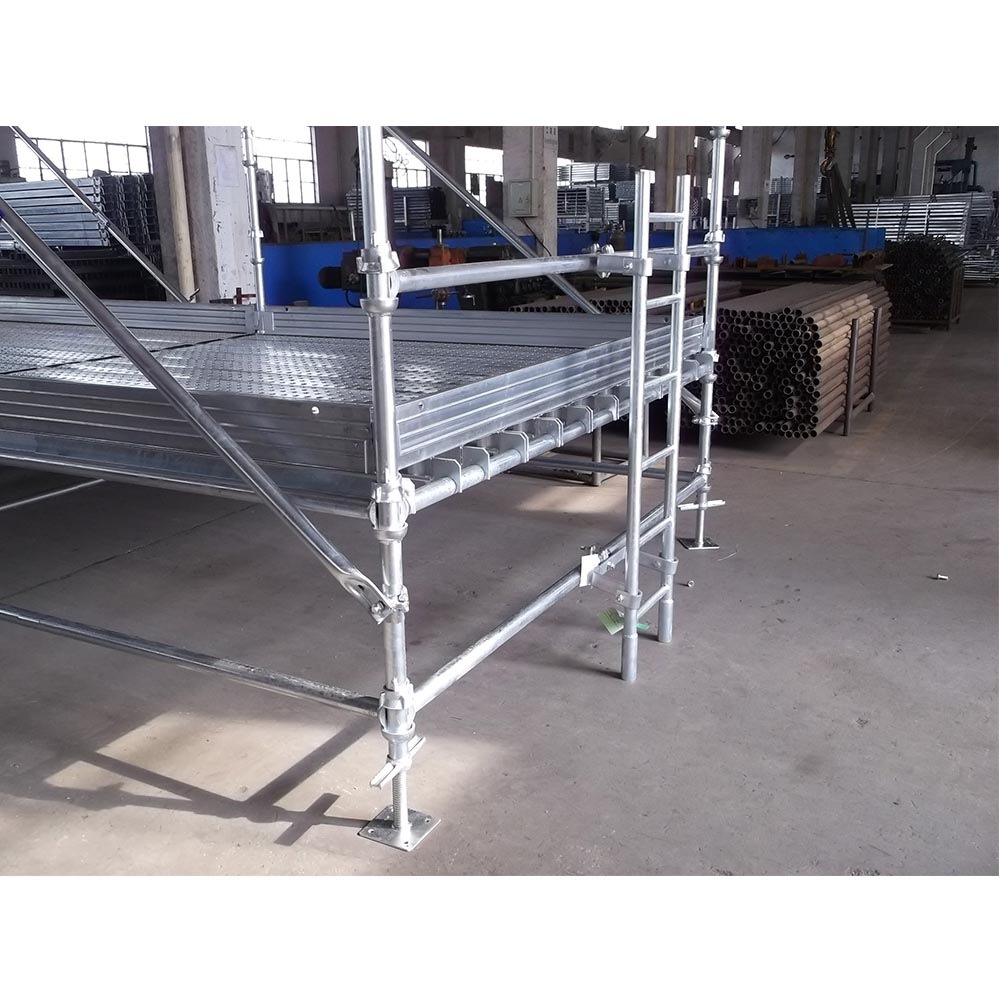

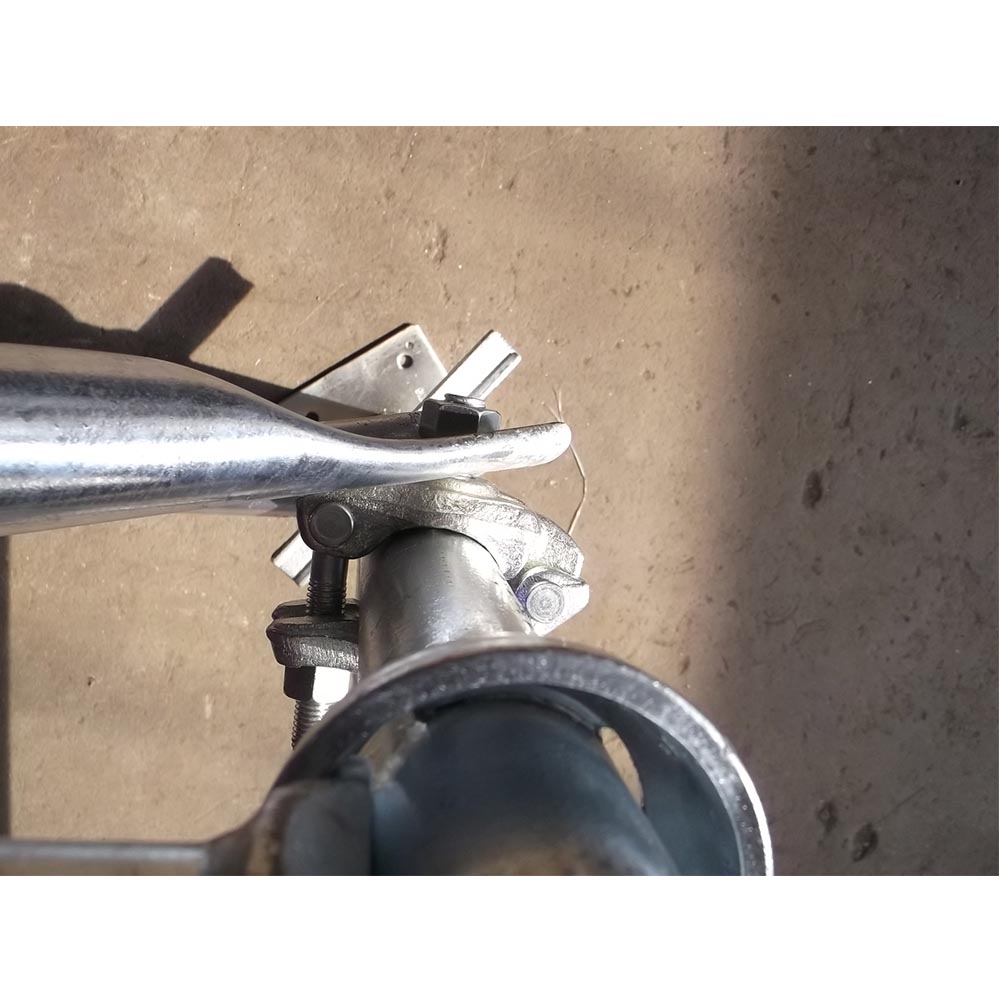

Connecting the cuplock diagonal with the vertical cuplock pole is convenient, forming a complete cuplock system with the cuplock standard and horizontal components. The diagonal brace provides reinforcement and it can be used as a handrail.
The finished of cuplock diagonal is hot-dip galvanized.
