Multidirectional Scaffolding System
Home / Products / Multidirectional Scaffolding System / Multidirectional scaffolding Diagonal brace

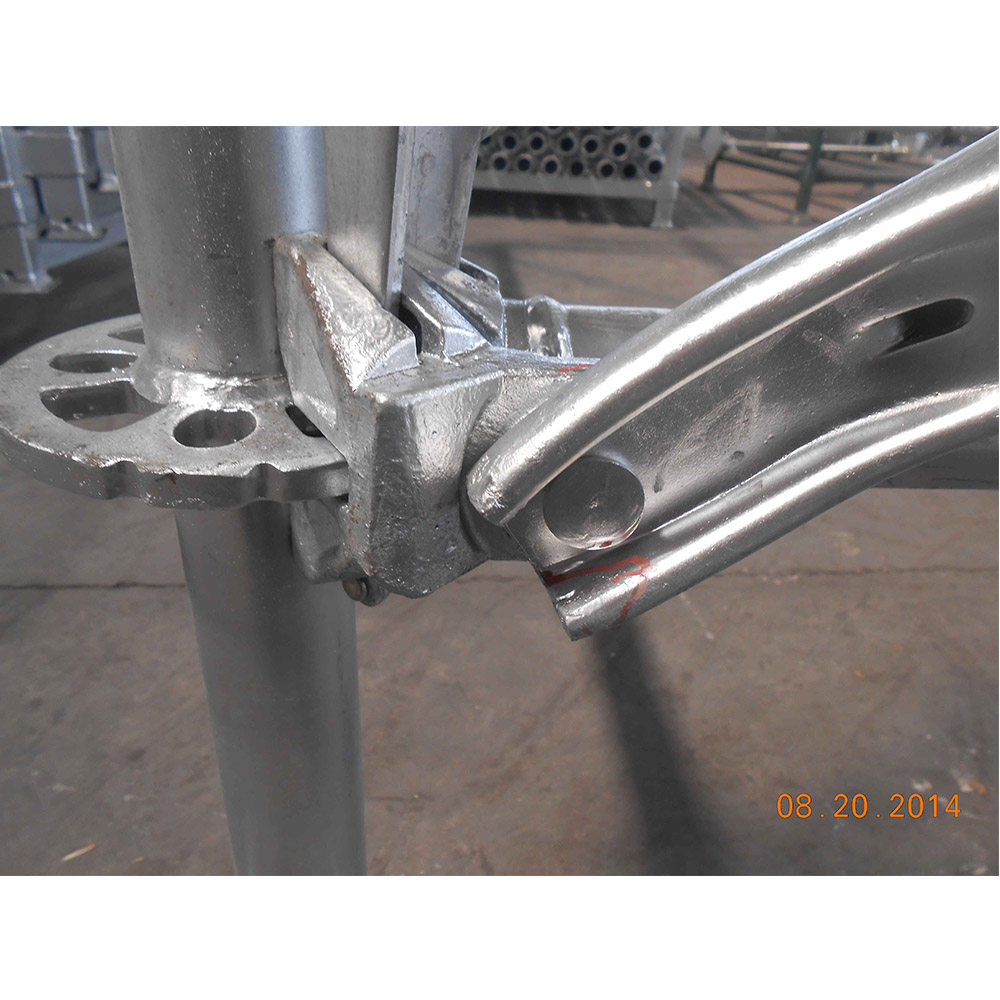

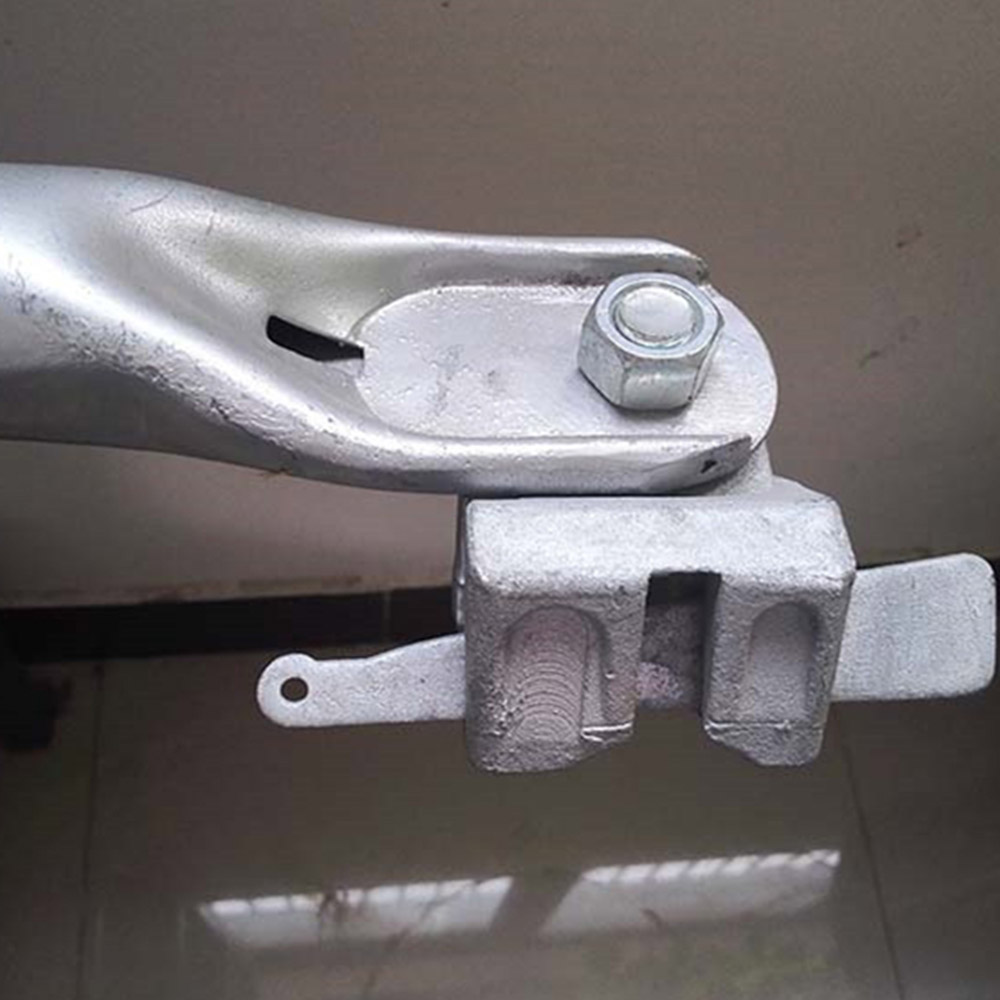

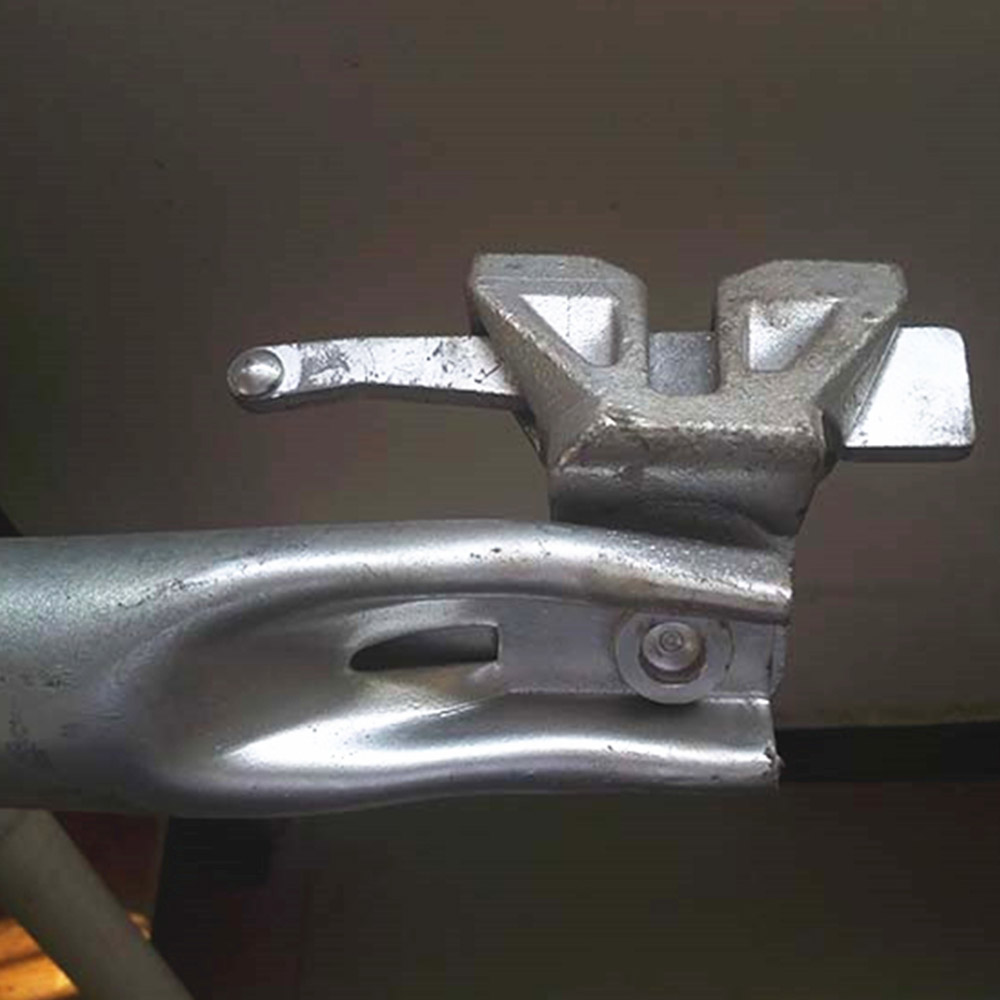

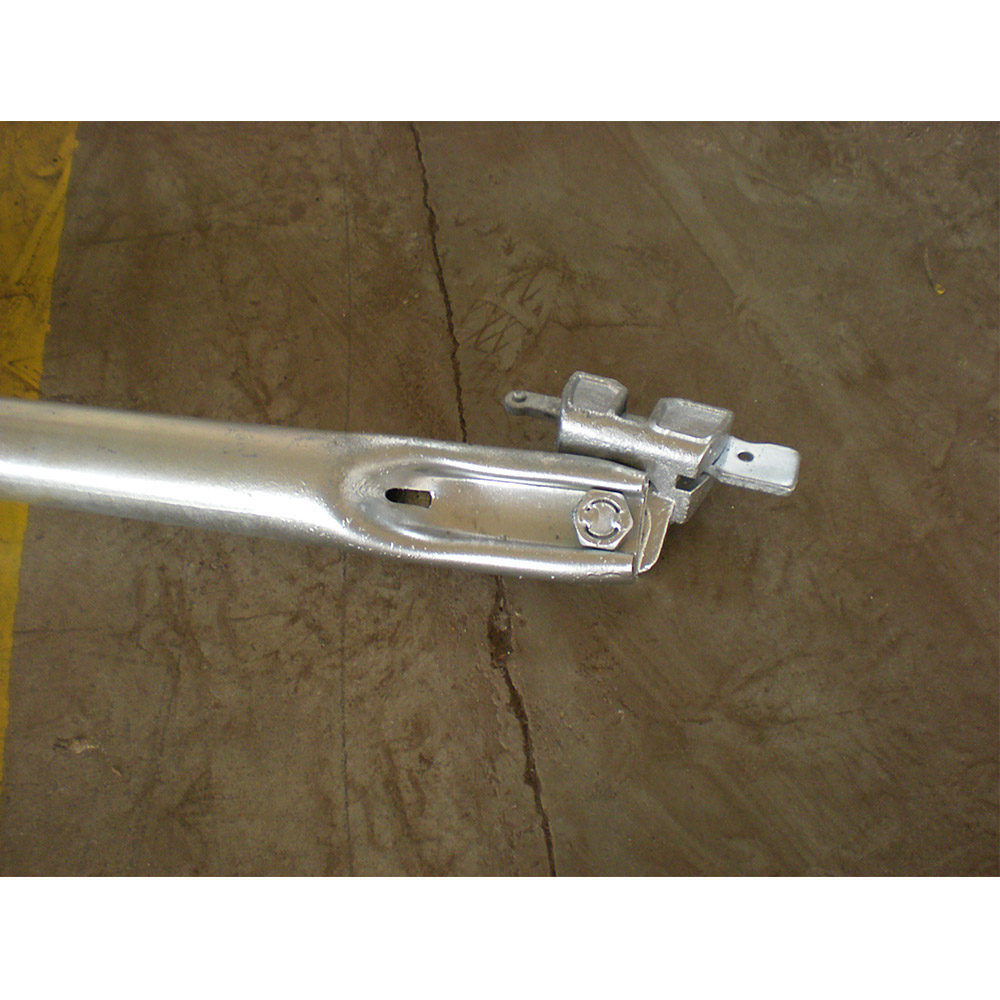

Insert the plugs on both ends of the diagonal brace into the corresponding taper holes located within the rosettes on the horizontal bar, then hammer them in tightly.
Product Size
| Diagonal bay brace (Facade brace for 2.0m lift height) | ||||
| Product | Bay length | Weight | ||
| REF No. | Description | Meters | Feet | KG |
| RSBB073 | Diagonal bay brace | 0.73 | 2'4" | 7.60 |
| RSBB088 | Diagonal bay brace | 0.88 | 2'9" | 7.88 |
| RSBB106 | Diagonal bay brace | 1.065 | 3'6" | 8.08 |
| RSBB115 | Diagonal bay brace | 1.15 | 3'10" | 8.17 |
| RSBB157 | Diagonal bay brace | 1.57 | 5'2" | 8.79 |
| RSBB182 | Diagonal bay brace | 1.82 | 6'0" | 9.23 |
| RSBB213 | Diagonal bay brace | 2.13 | 7'0" | 9.80 |
| RSBB243 | Diagonal bay brace | 2.43 | 8'0" | 10.44 |
| RSBB305 | Diagonal bay brace | 3.05 | 10'0" | 12.05 |
Product Description
Insert the plugs on both ends of the diagonal brace into the corresponding taper holes located within the rosettes on the horizontal bar, then hammer them in tightly.

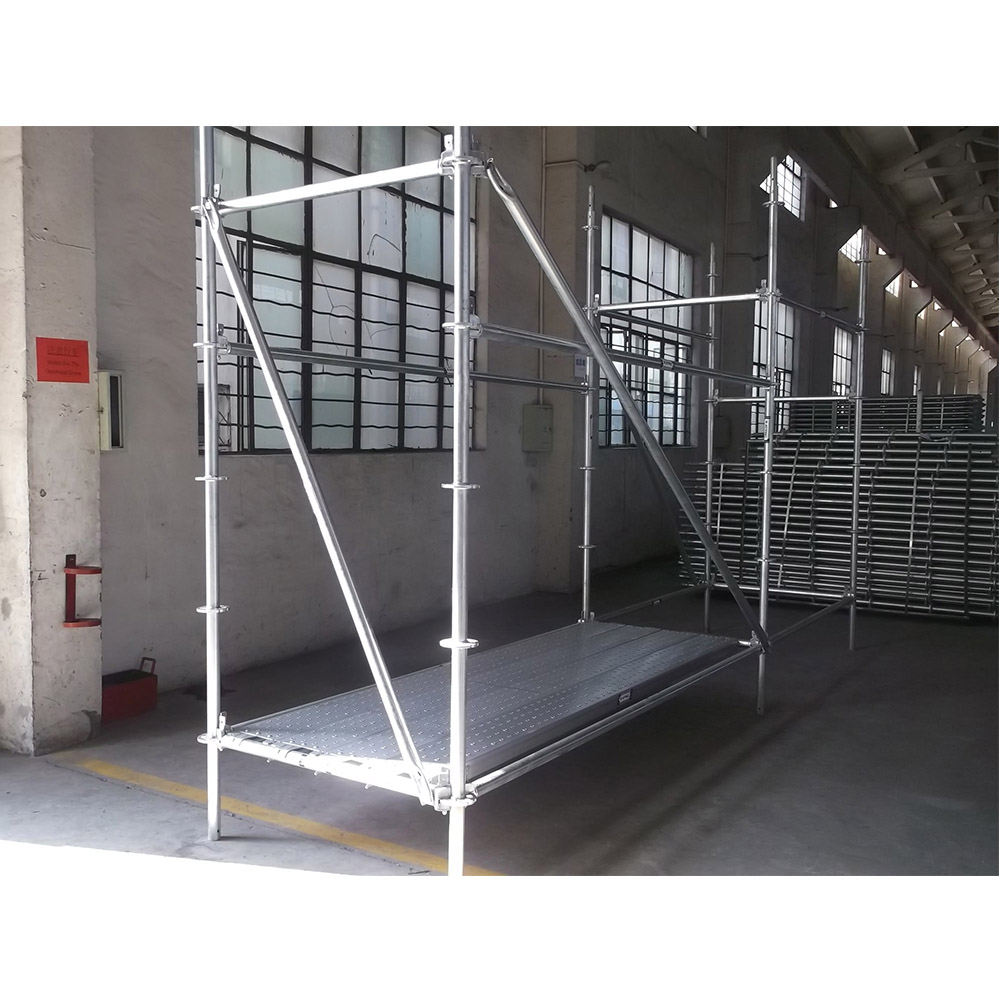

The diagonal bar can be easily connected to a multidirectional standard, thus creating an entire multidirectional system with a vertical and horizontal bar. The diagonal plays a reinforcement role, and can also be used as a guardrail. Like the other components, the multidirectional diagonal is hot dip galvanized.
Material: Q235
Tube size: 48.3*2.30mm
Our multidirectional scaffolding system gets CE certificate, meet EN74, EN12811 standard, we have exported to USA, Canada, UK, Greece, Sweden,Australia, Colombia, Chile, Peru, etc.
