Multidirectional Scaffolding System
Home / Products / Multidirectional Scaffolding System / Multidirectional scaffolding ledger

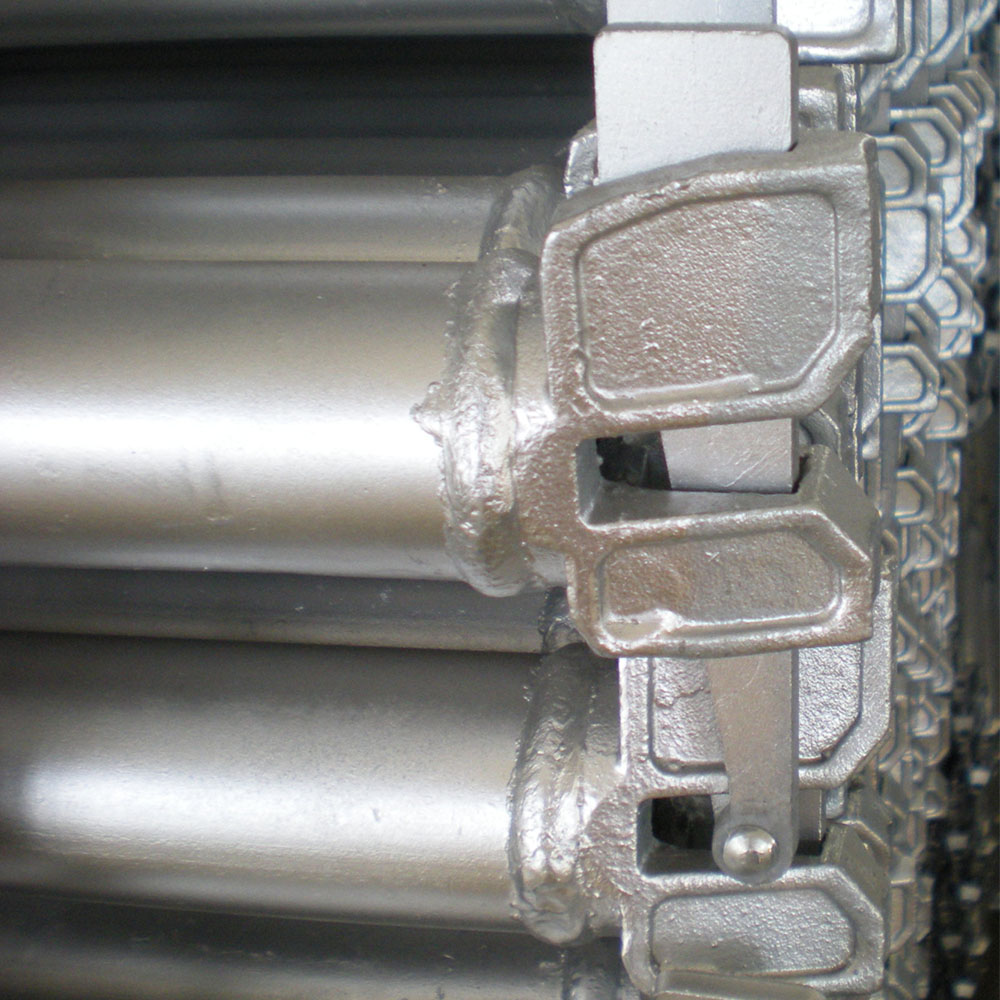

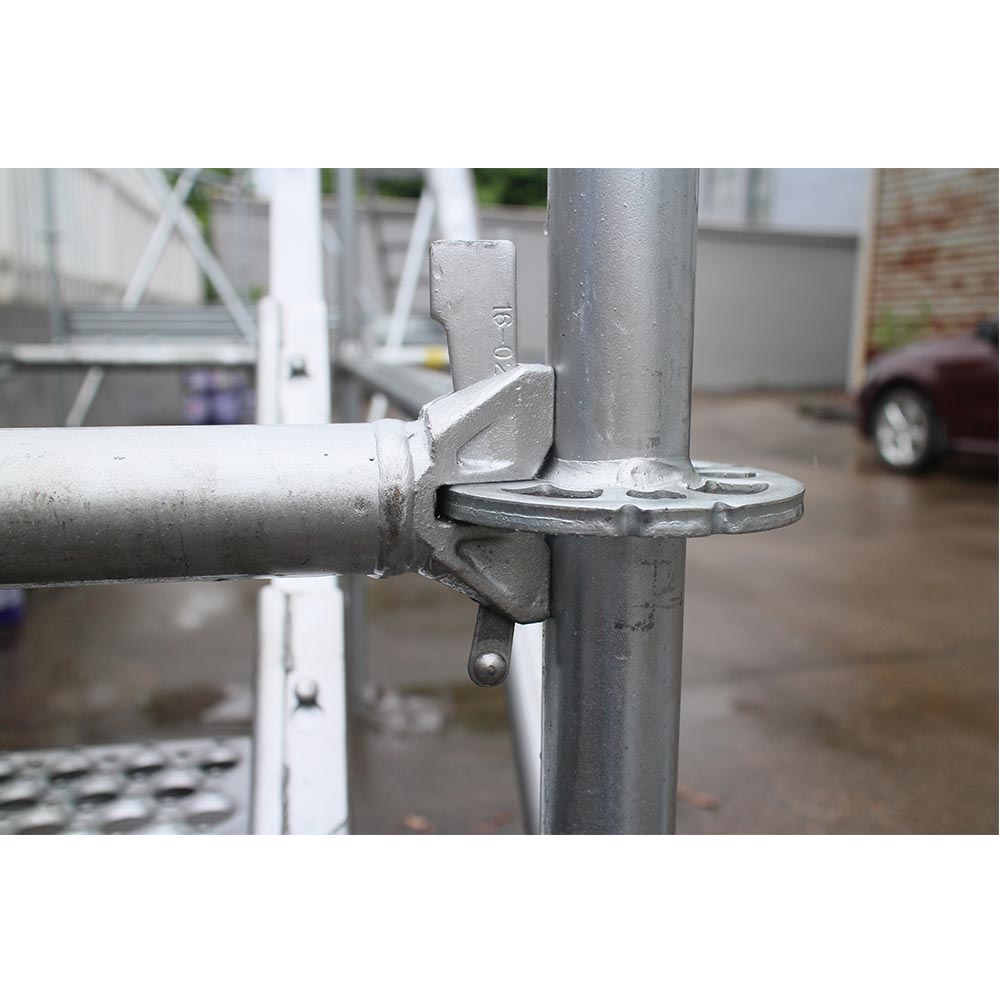

Multidirectional scaffolding ledger ( horizontal) plays a supporting role in scaffolding support. The shorter horizontal bar is used as the horizontal support for a plank or guardrail. Insert the plugs at both ends of the horizontal bar into their corresponding taper holes within the standard rosettes, then hammer them together tightly. It is easy to connect the horizontal bar to the vertical bar, thus creating a full ringlock system with a vertical bar and diagonal brace. The horizontal bar is also hot dip galvanized.
Product Size
| Ledger O-type | ||||
| Product | Length | Weight | ||
| REF No. | Description | Meters | Feet | KG |
| RSL065 | Ledger O-type | 0.65 | 2'2" | 3.12 |
| RSL073 | Ledger O-type | 0.73 | 2'4" | 3.40 |
| RSL088 | Ledger O-type | 0.88 | 2'9" | 3.98 |
| RSL106 | Ledger O-type | 1.065 | 3'6" | 4.68 |
| RSL115 | Ledger O-type | 1.15 | 3'10" | 5.00 |
| RSL157 | Ledger O-type | 1.57 | 5'2" | 6.36 |
| RSL182 | Ledger O-type | 1.82 | 6'0" | 7.56 |
| RSL200 | Ledger O-type | 2.00 | 6'7" | 8.20 |
| RSL213 | Ledger O-type | 2.13 | 7'0" | 8.70 |
| RSL243 | Ledger O-type | 2.43 | 8'0" | 9.85 |
| RSL305 | Ledger O-type | 3.05 | 10' | 12.17 |
Product Description
Multidirectional scaffolding ledger ( horizontal) plays a supporting role in scaffolding support. The shorter horizontal bar is used as the horizontal support for a plank or guardrail. Insert the plugs at both ends of the horizontal bar into their corresponding taper holes within the standard rosettes, then hammer them together tightly. It is easy to connect the horizontal bar to the vertical bar, thus creating a full ringlock system with a vertical bar and diagonal brace. The horizontal bar is also hot dip galvanized.
Our ringlock scaffolding system gets CE certificate, meet EN12811 standard, widely exported to USA, Canada, Greece, Sweden,Australia, Colombia, Chile, Peru, etc.
Material: Q235 steel or Q345 steel

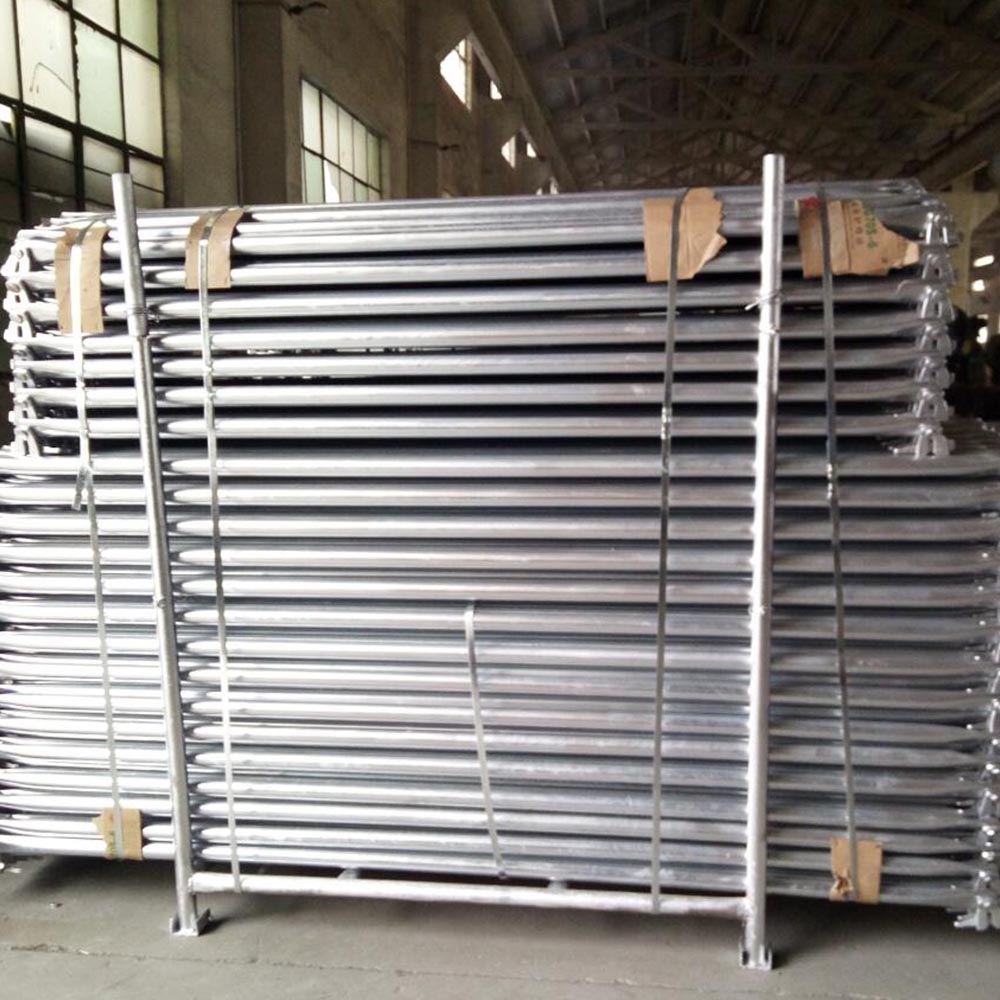

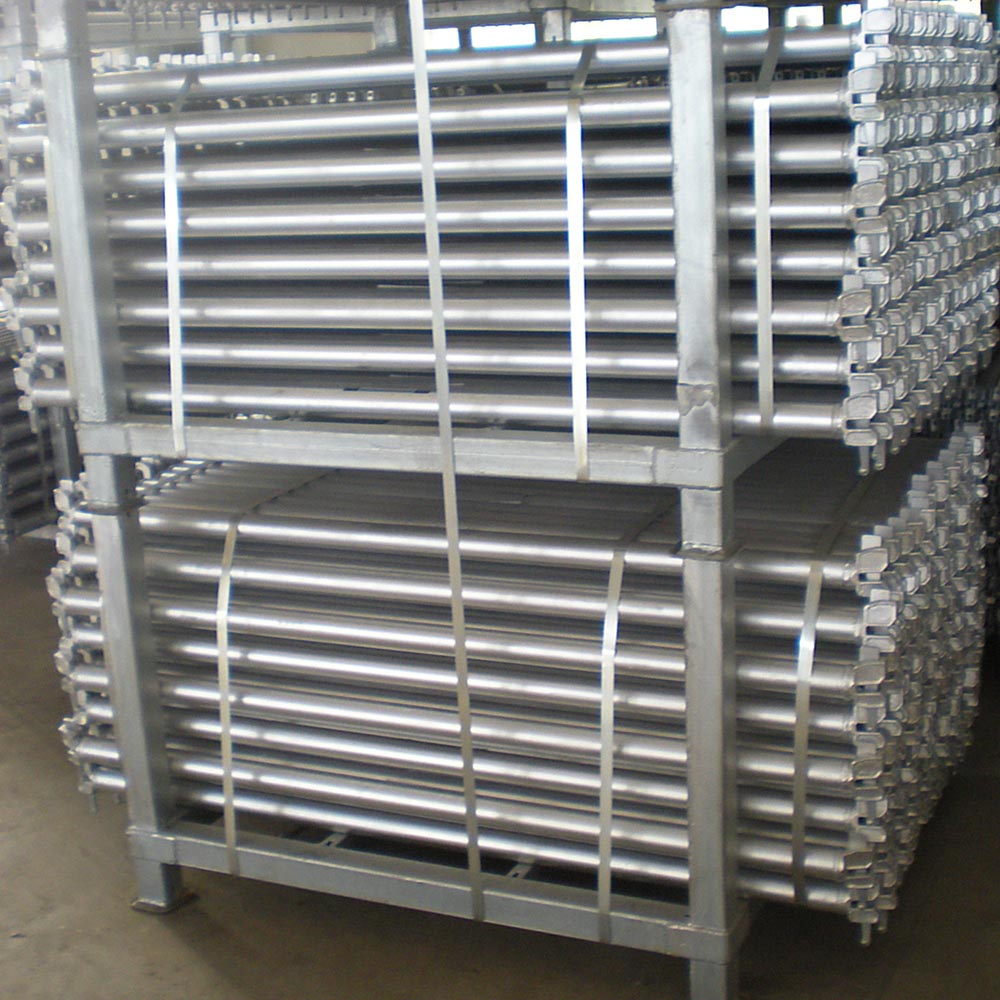

Packing: steel rack
