Pin type Italian frame scaffolding

It’s a popular scaffolding widely used in Italy and others European country.

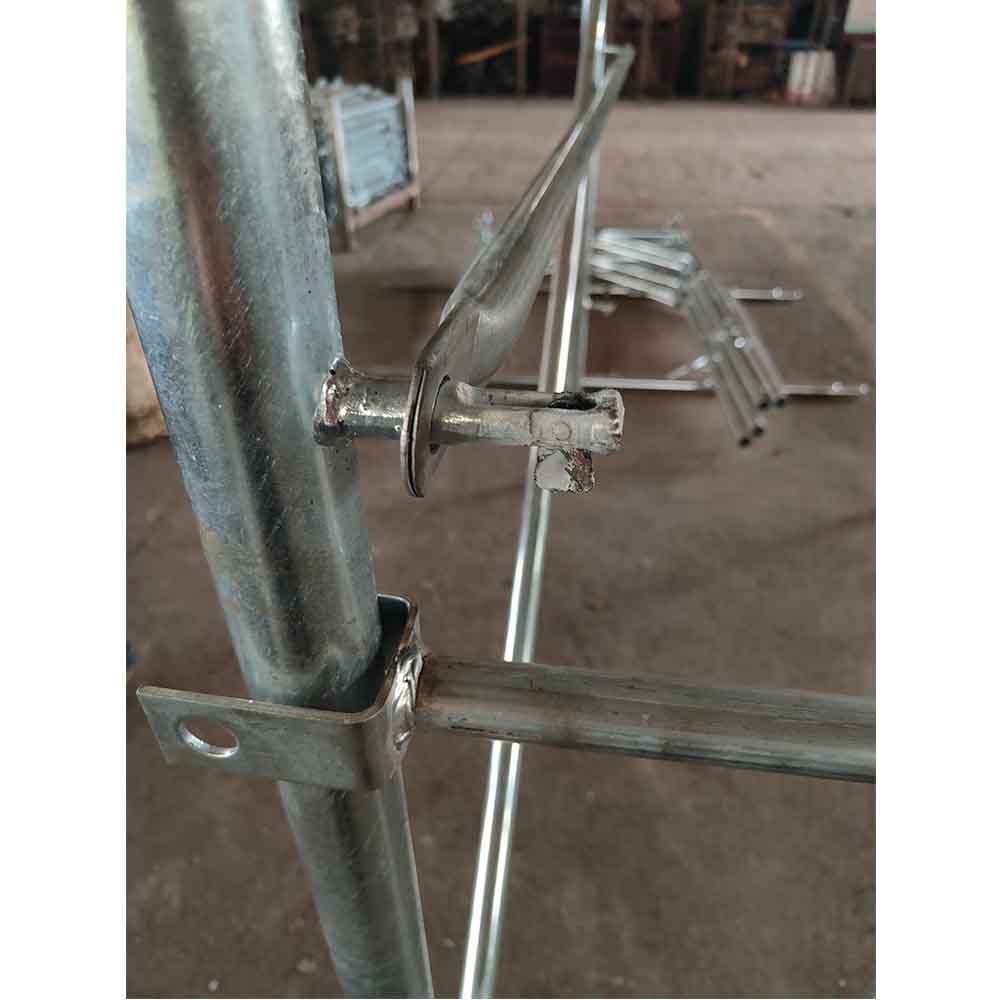

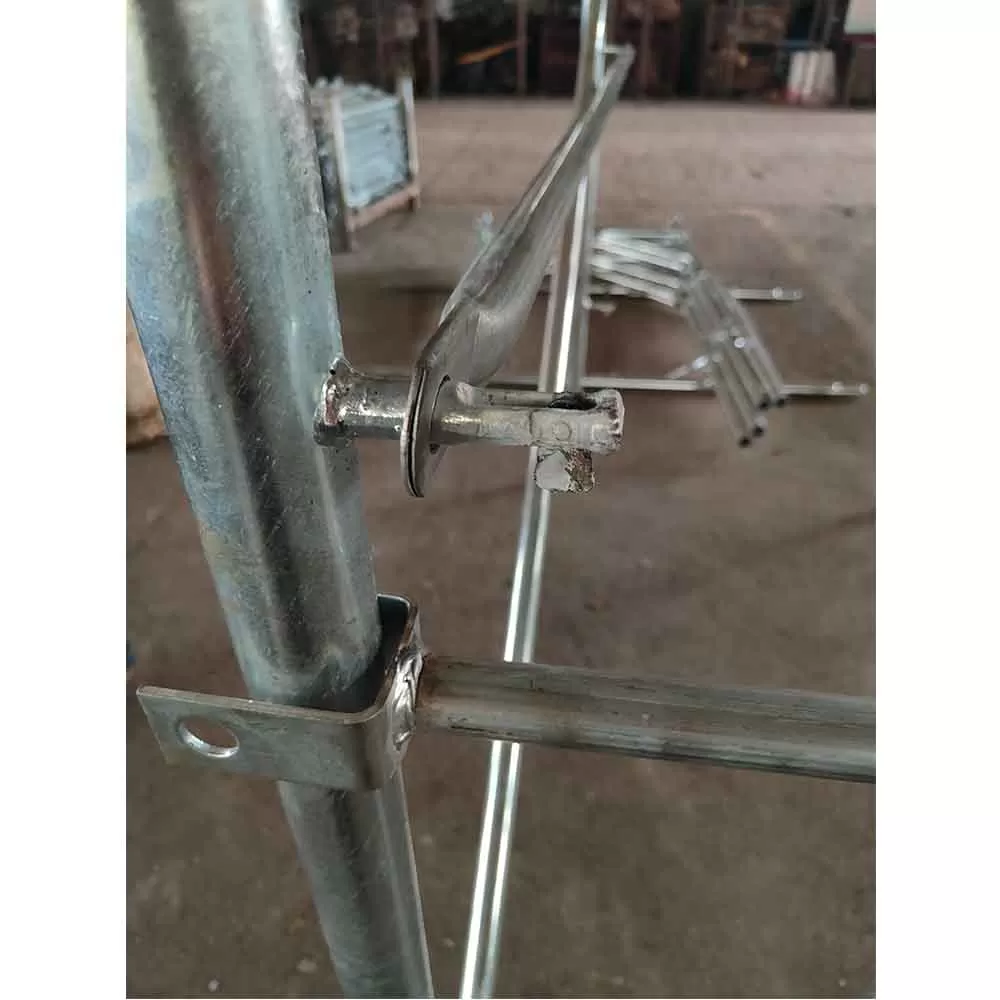

Connection between the frames is carried out by means of pipe horizontal ledgers and diagonal braces featuring - at the ends - holes with diameter appropriate for the insertion of the pins welded on the uprights of the frameworks.

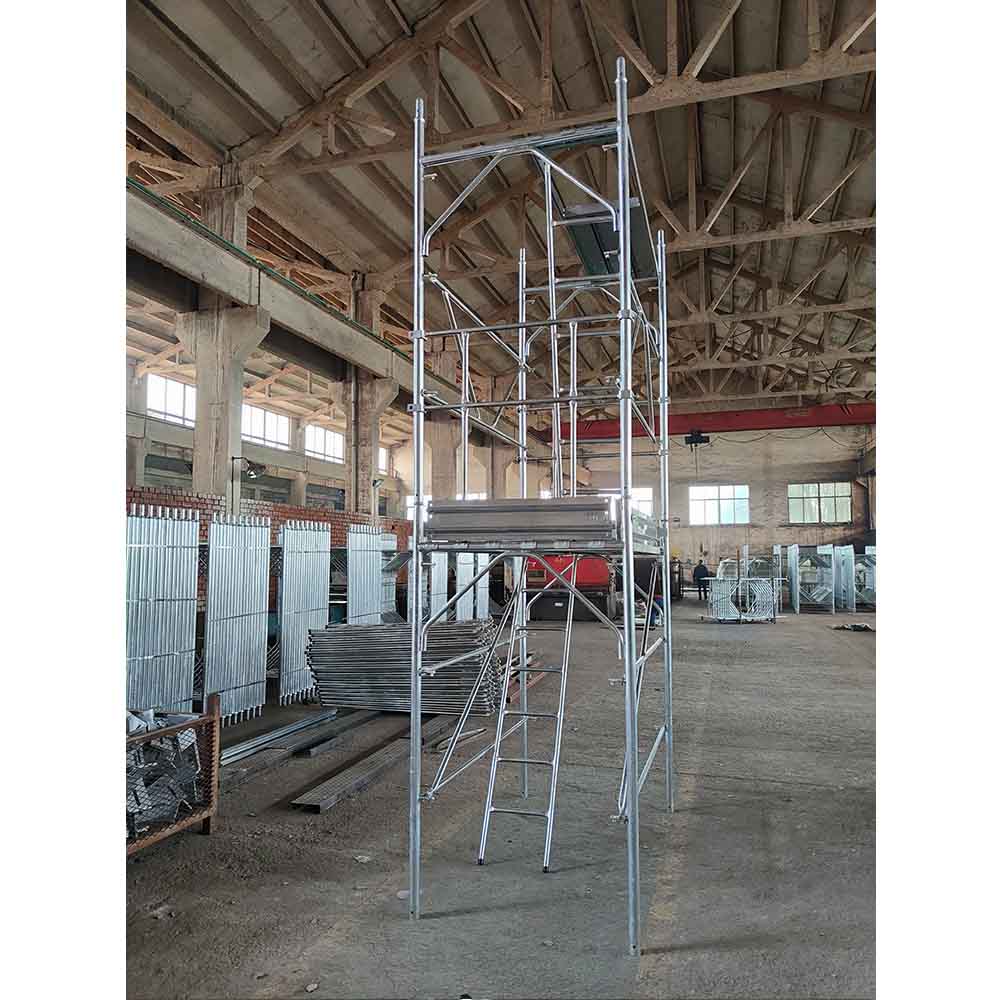

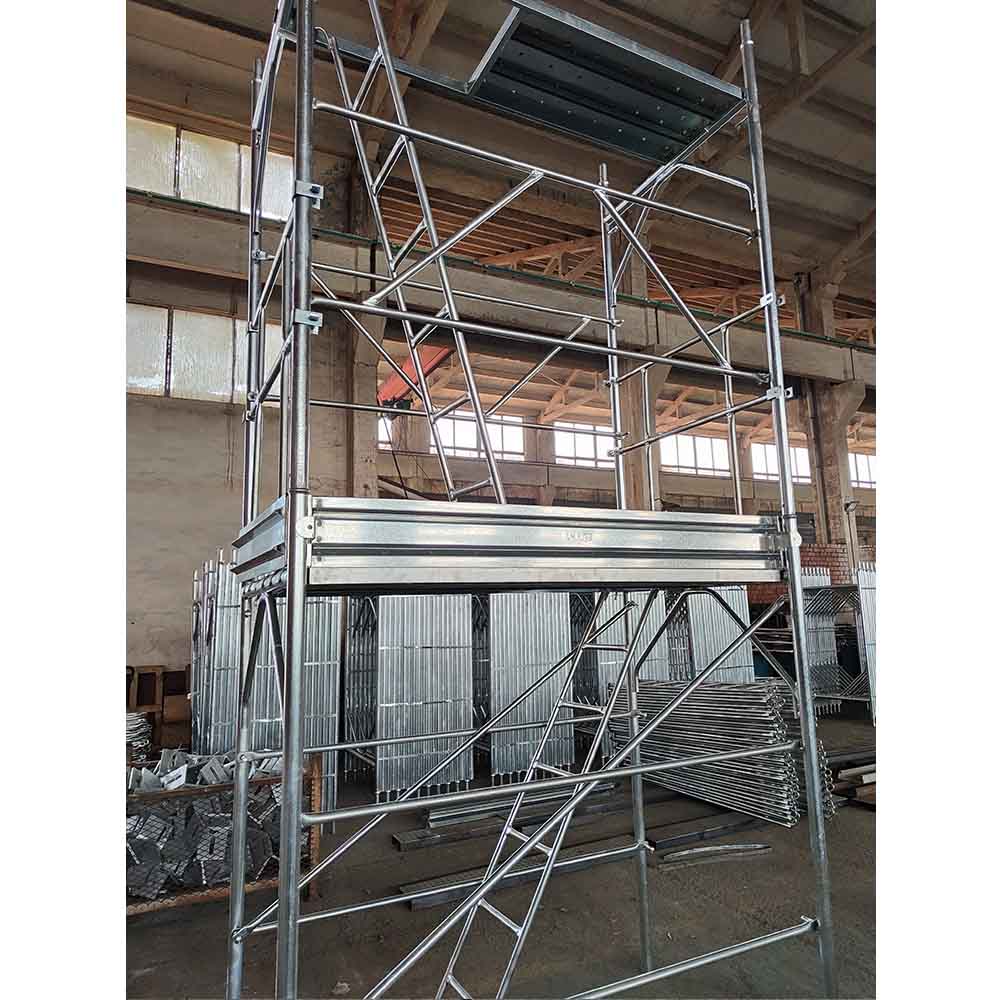

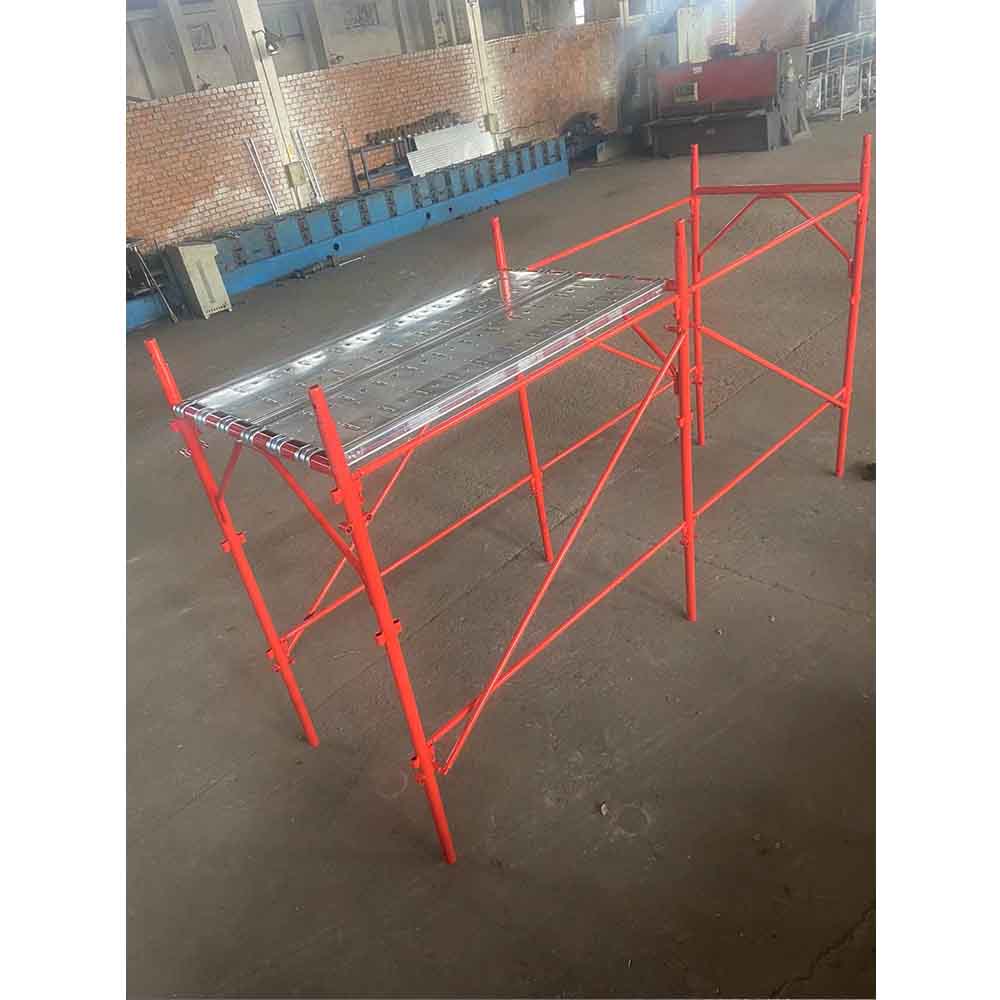

A whole pin type scaffolding includes frames, horizontals, diagonals, planks, toe boards, ladders, screw jack bases etc.

It’s easy to install, and a good choice for your projects.

Pitch: 1800 mm

Frame height: 2000 mm

Frame depth: 1050 mm

Half frame height: 1240 mm

Length of horizontal ledgers centre distance: 1800 mm

Length of diagonal braces centre distance: 2160 mm

Frame weight: 18.50 kg

Half frame weight: 14.00 kg

Horizontal ledgers weight: 2.60 kg

Diagonals braces weight: 3.10 kg

Material: Steel

Finished: Hot dip galvanized, powder coating

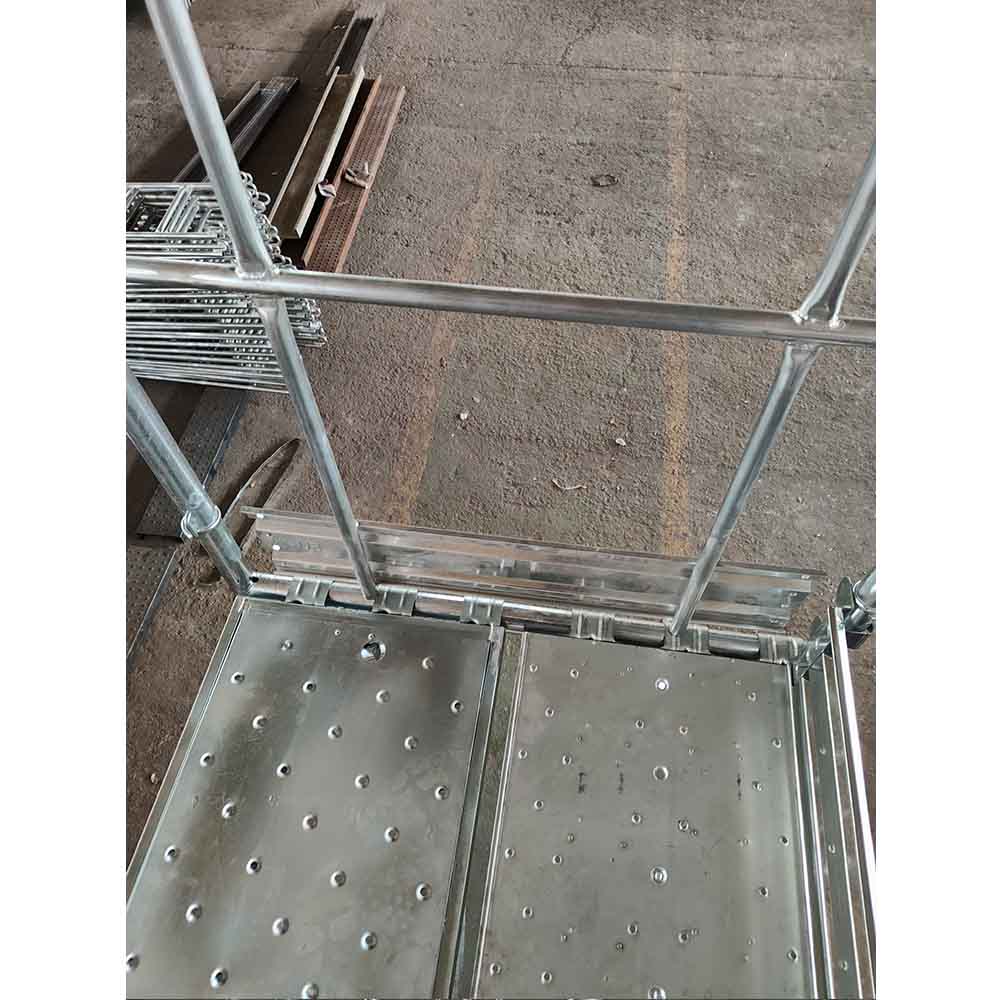

Platforms with trapdoors and ladder

Safety parapets for the ends, stone guards, rods, top parapets, adjustable base plates, toe boards.
