Formwork
Home / Products / Formwork / Formwork system
Applications
Our formwork systems are used for constructing:
High-rise buildings and skyscrapers
Bridges and viaducts
Dams and power plants
Residential housing and infrastructure projects
Formwork system
| No. | Description | Weight (without plywood) |
| 1 | Dynami Formwork Panel 3000*900 | 57.15 |
| 2 | Dynami Formwork Panel 3000*800 | 53.50 |
| 3 | Dynami Formwork Panel 3000*750 | 51.45 |
| 4 | Dynami Formwork Panel 3000*700 | 49.70 |
| 5 | Dynami Formwork Panel 3000*650 | 47.70 |
| 6 | Dynami Formwork Panel 3000*600 | 45.75 |
| 7 | Dynami Formwork Panel 3000*550 | 43.94 |
| 8 | Dynami Formwork Panel 3000*500 | 42.00 |
| 9 | Dynami Formwork Panel 3000*450 | 40.05 |
| 10 | Dynami Formwork Panel 3000*400 | 38.24 |
| 11 | Dynami Formwork Panel 3000*350 | 36.30 |
| 12 | Dynami Formwork Panel 3000*300 | 34.50 |
| 13 | Dynami Formwork Panel 3000*250 | 33.50 |
| 14 | Dynami Formwork Panel 3000*200 | 31.40 |
| 15 | Dynami Formwork Conner Panel 3000*300*300 | 56.21 |
| 16 | Dynami Formwork Conner Panel 3000*250*250 | 51.20 |
| 17 | Dynami Formwork Conner Panel 3000*200*200 | 47.50 |
Formwork system
Our comprehensive formwork system typically consists of the following components:
Formwork Panels: The frames are usually made of steel or aluminum, the finished can be hot dip galvanized or powder coating.
Covered by high quality plywood, the thickness can be from 14 to 18mm.

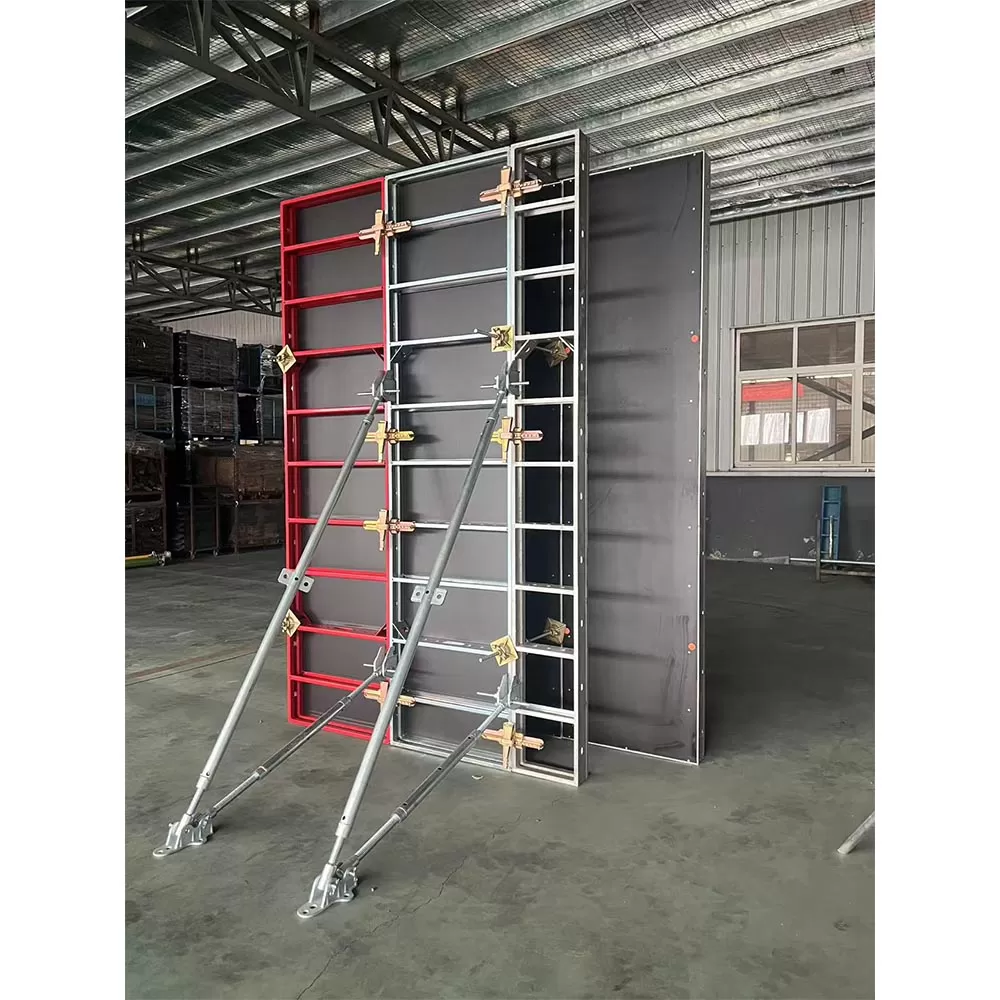

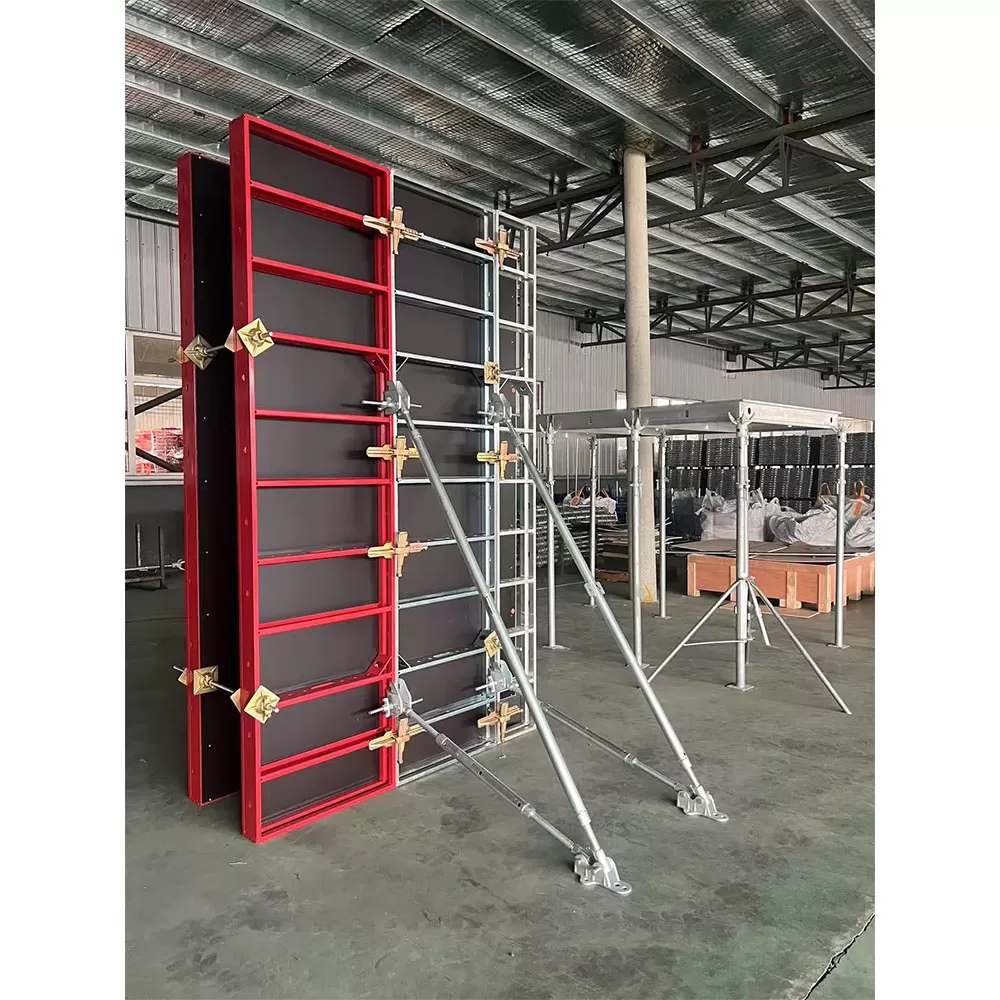

Formwork props: To support the formwork panels, keep them steady.

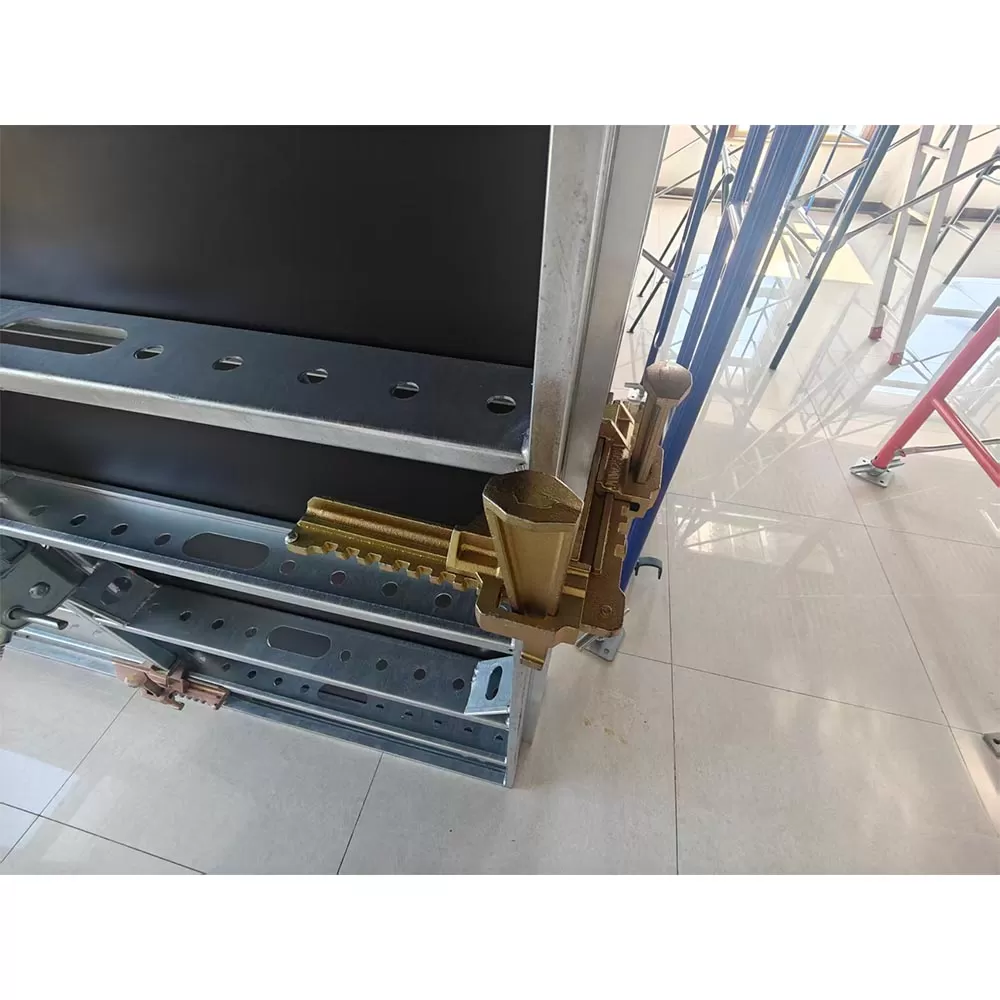

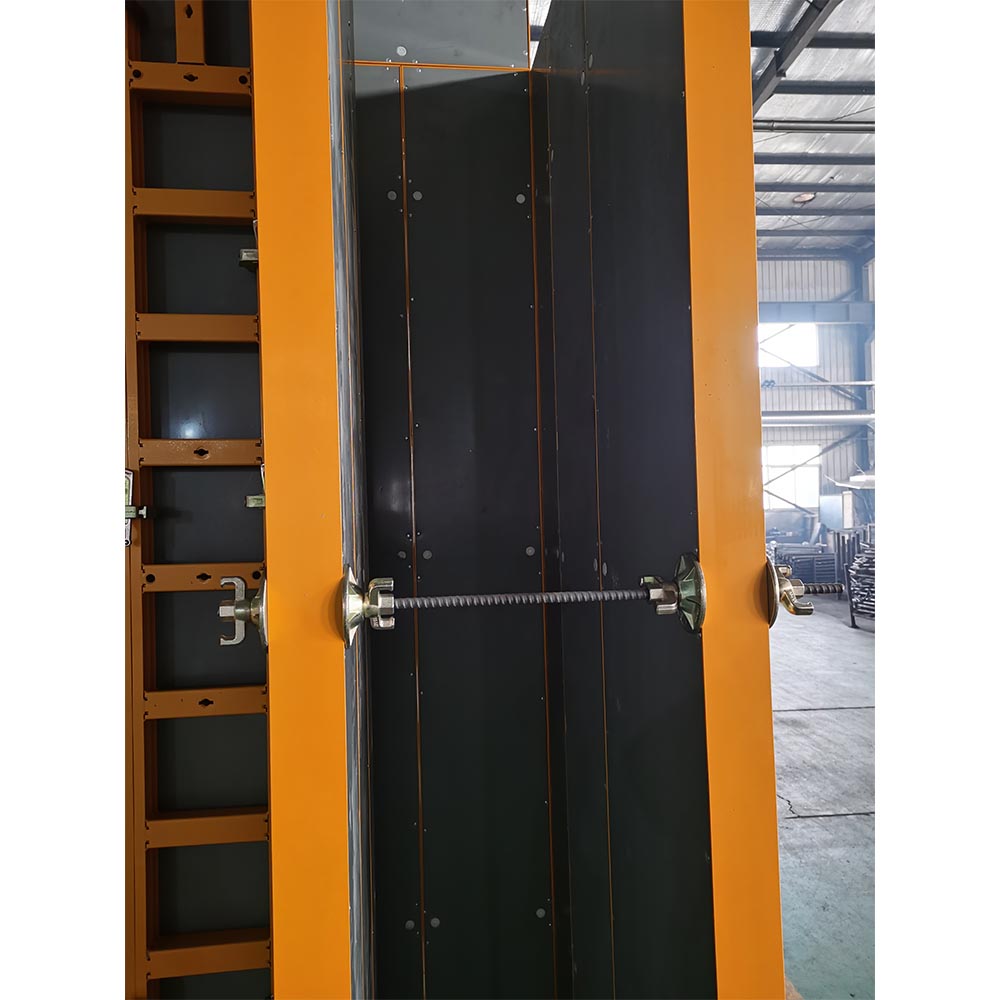

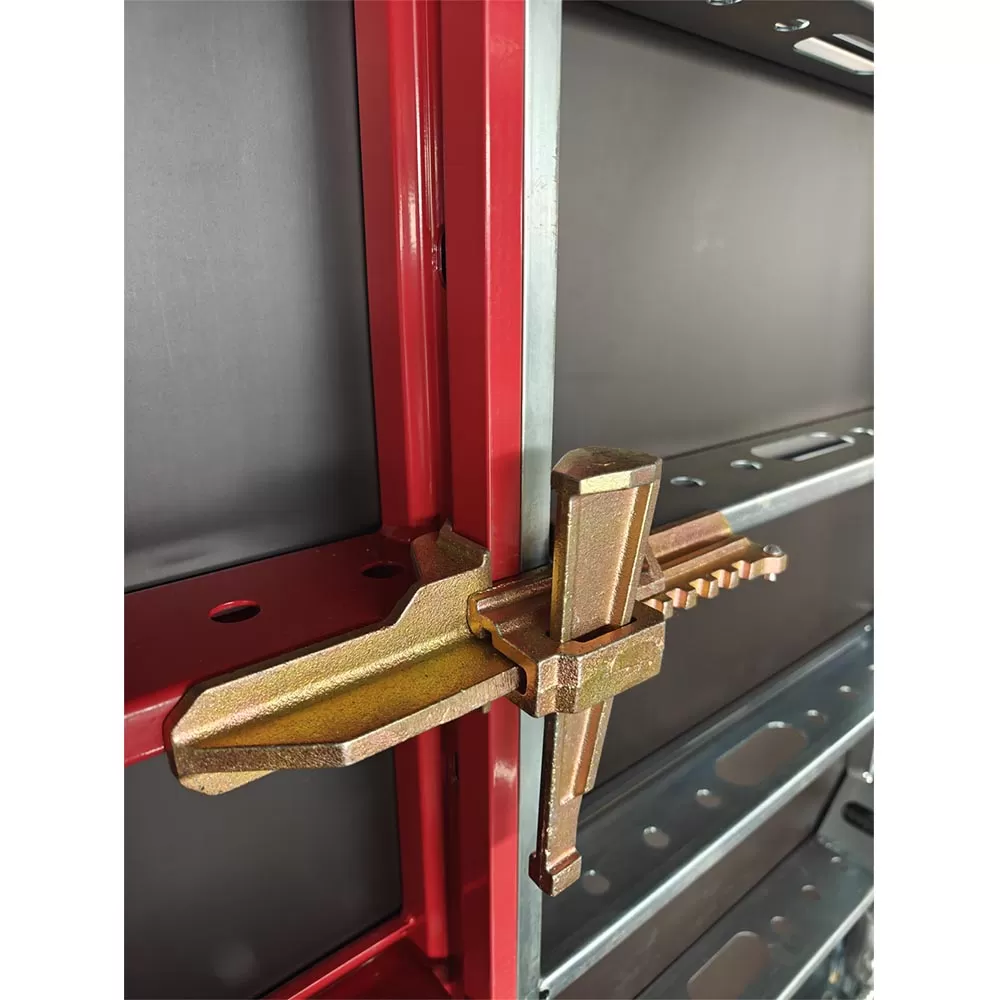

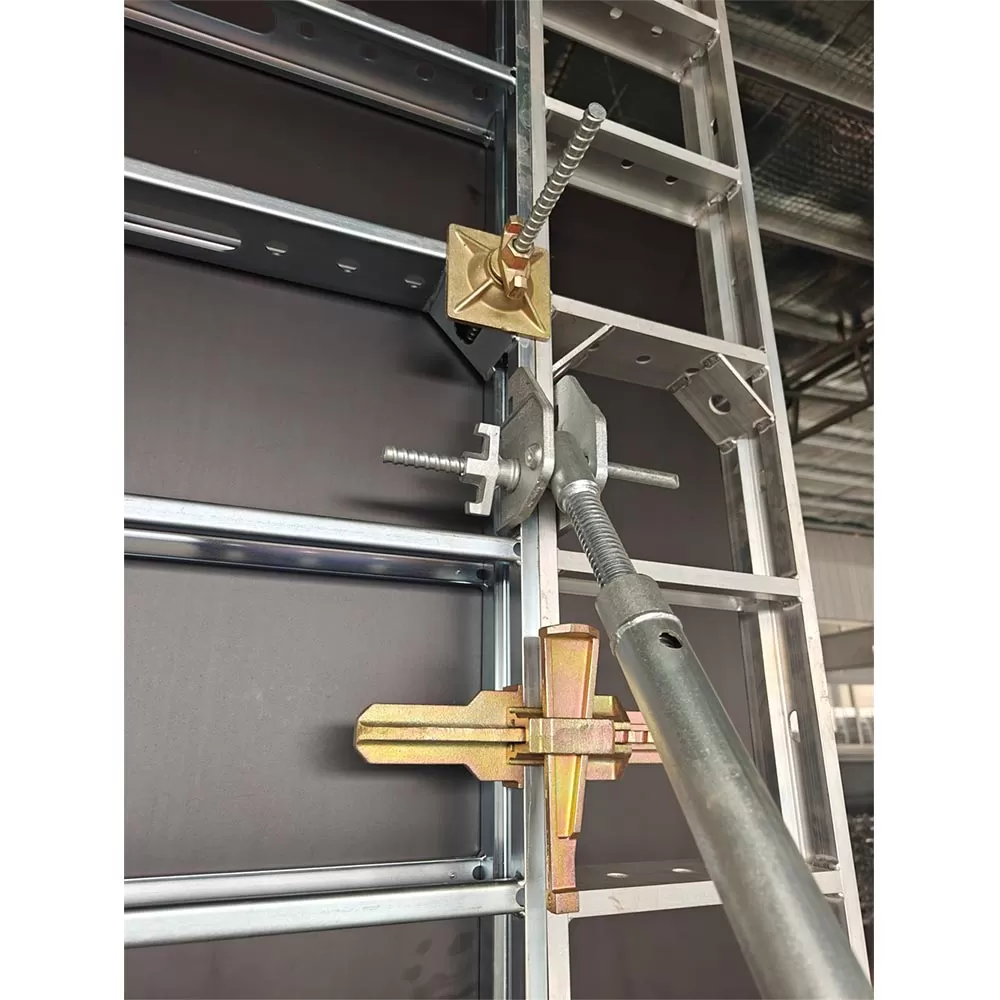

Accessories: Connectors, clamps, tie rods, and anchors that hold the system together securely.
Benefits of our Formwork Systems
Speed of Construction: Modular systems allow for rapid assembly and dismantling.
Cost Efficiency: High reusability (hundreds of cycles) reduces the cost per square meter.
Safety: Engineered systems come with integrated safety features and clear load-bearing specifications.
Quality Finish: Provides a smooth, defect-free concrete surface, reducing the need for plastering.
Sustainability: Reduces material waste compared to traditional methods.
