Multidirectional Scaffolding System
Home / Products / Multidirectional Scaffolding System / Multidirectional scaffolding standard

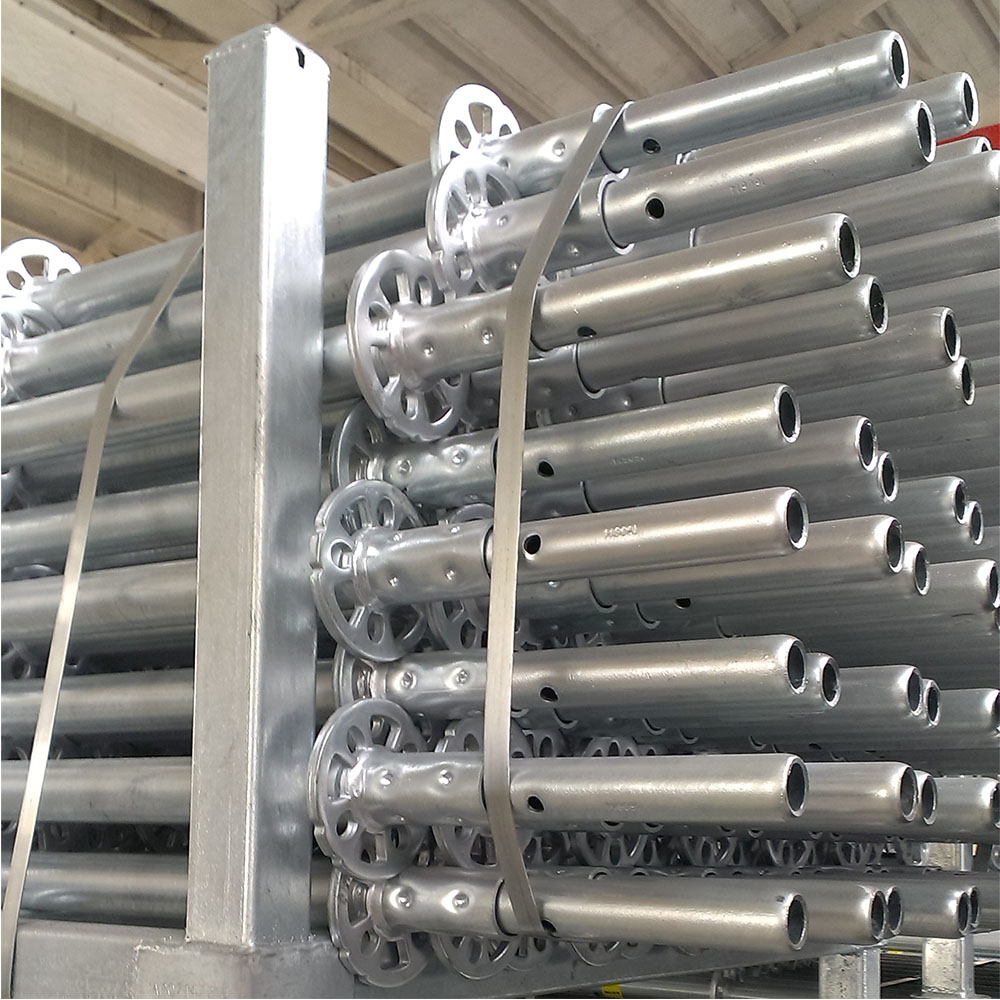

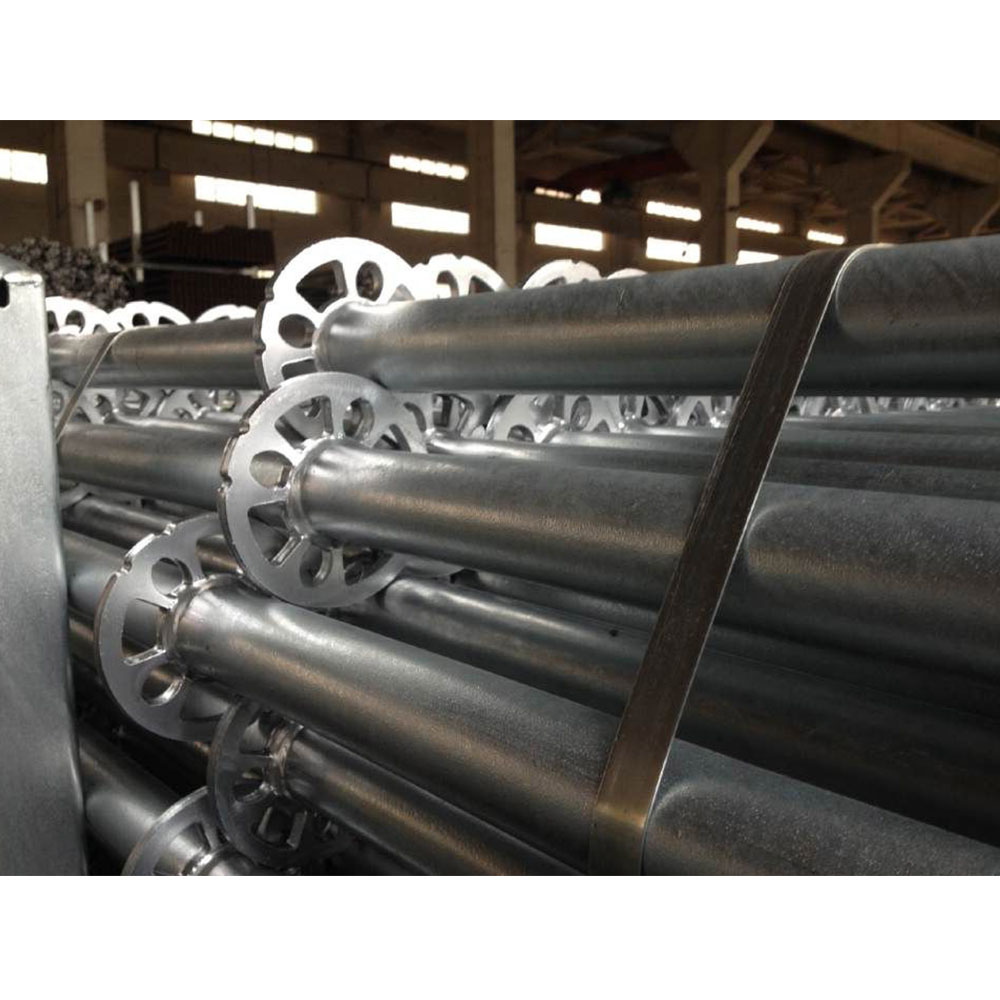

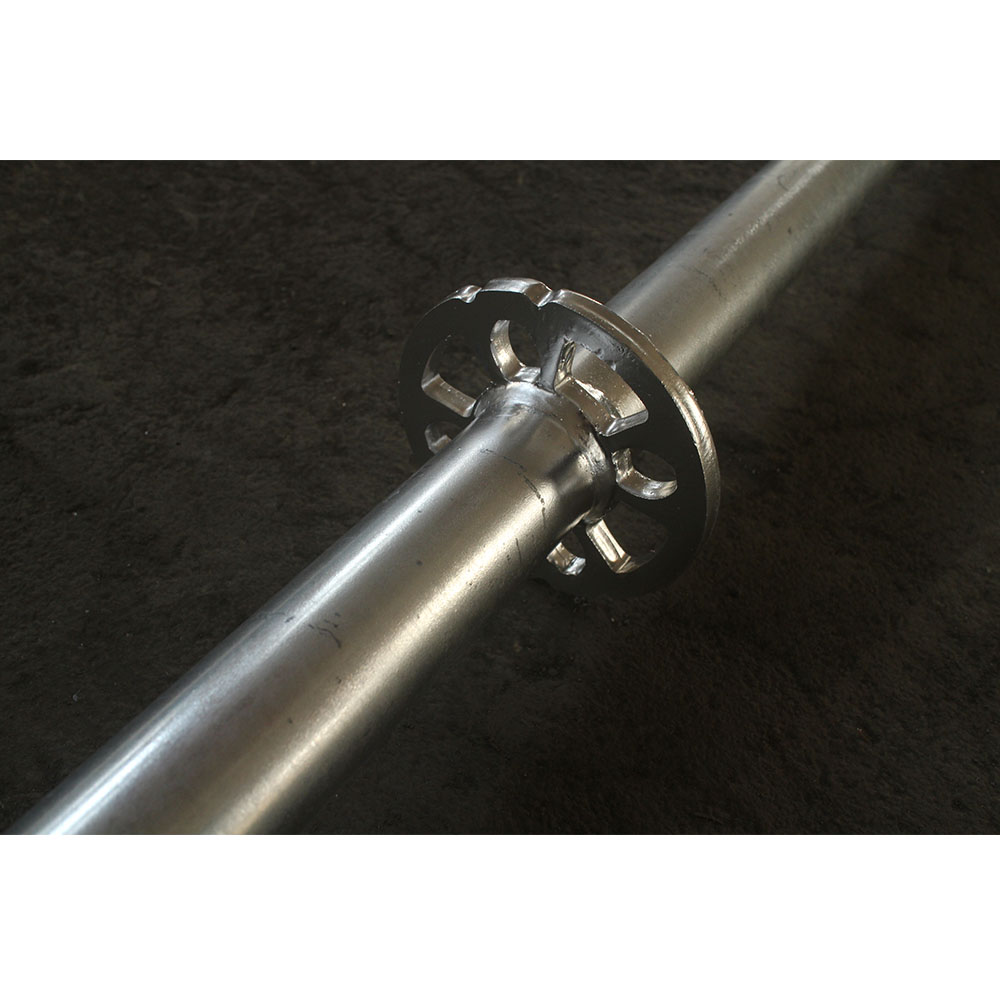

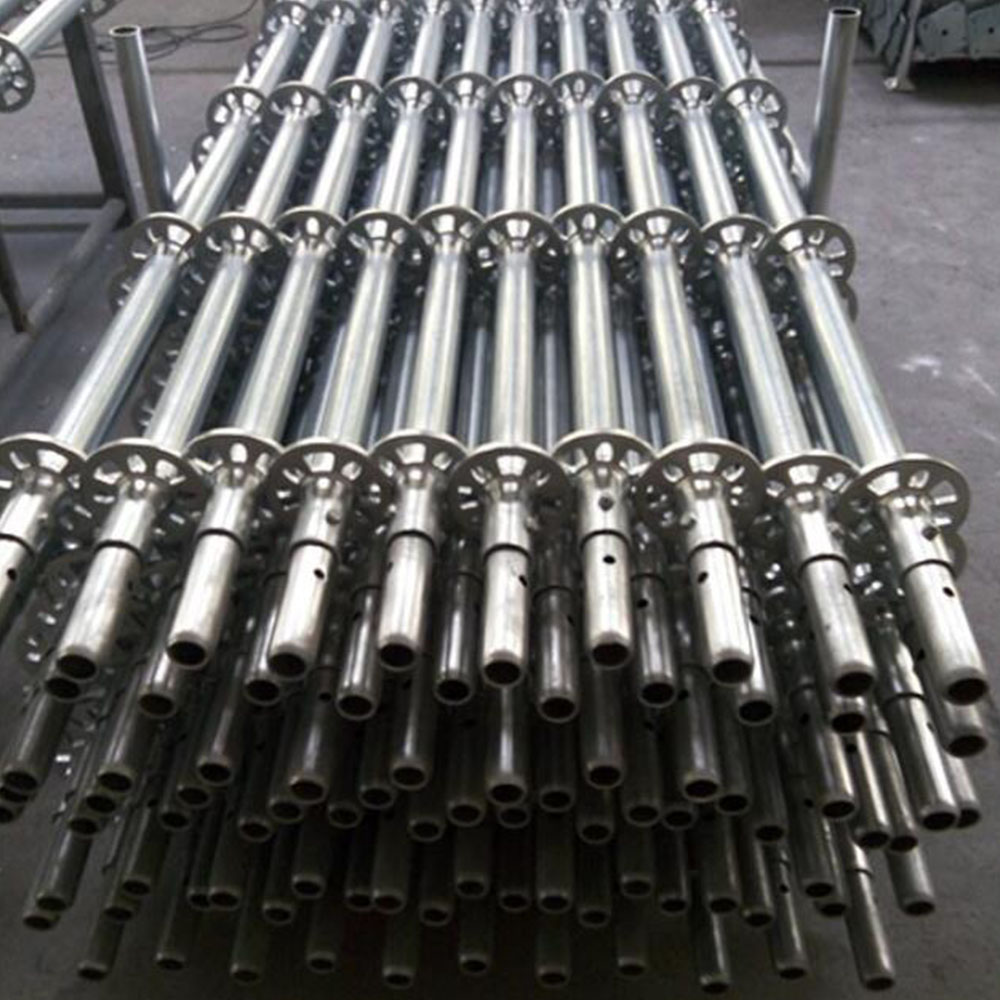

Multidirectional standard scaffolding has rosettes at an interval of 0.5m. This convenient easily pairs with horizontal and diagonal braces to form a complete multidirectional system, and offer vertical support within the system. The surface has been hot dip galvanized for a better corrosion resistance.
Product Size
| Standard with bolted spigot | ||||
| Product | Height | Weight | ||
| REF No. | Description | Meters | Feet | KG |
| RSS050 | Standard (1 Ring) | 0.5 | 1'8" | 3.32 |
| RSS100 | Standard (2 Ring) | 1.0 | 3'3" | 5.66 |
| RSS150 | Standard (3 Ring) | 1.5 | 4'11" | 8.00 |
| RSS200 | Standard (4 Ring) | 2.0 | 6'6" | 10.20 |
| RSS250 | Standard (5 Ring) | 2.5 | 8'2" | 12.69 |
| RSS300 | Standard (6 Ring) | 3.0 | 9'9" | 15.03 |
Product Description
Multidirectional standard scaffolding has rosettes at an interval of 0.5m. This convenient easily pairs with horizontal and diagonal braces to form a complete multidirectional system, and offer vertical support within the system. The surface has been hot dip galvanized for a better corrosion resistance.
Normal, the material will be Q235 steel or Q345 steel, both of which are commonly used in the industry. Q235 is much less expensive than Q345, and is a popular economic choice. The Q345 steel has a higher yield than the Q235, so that customers with higher requirements will choose the Q345.

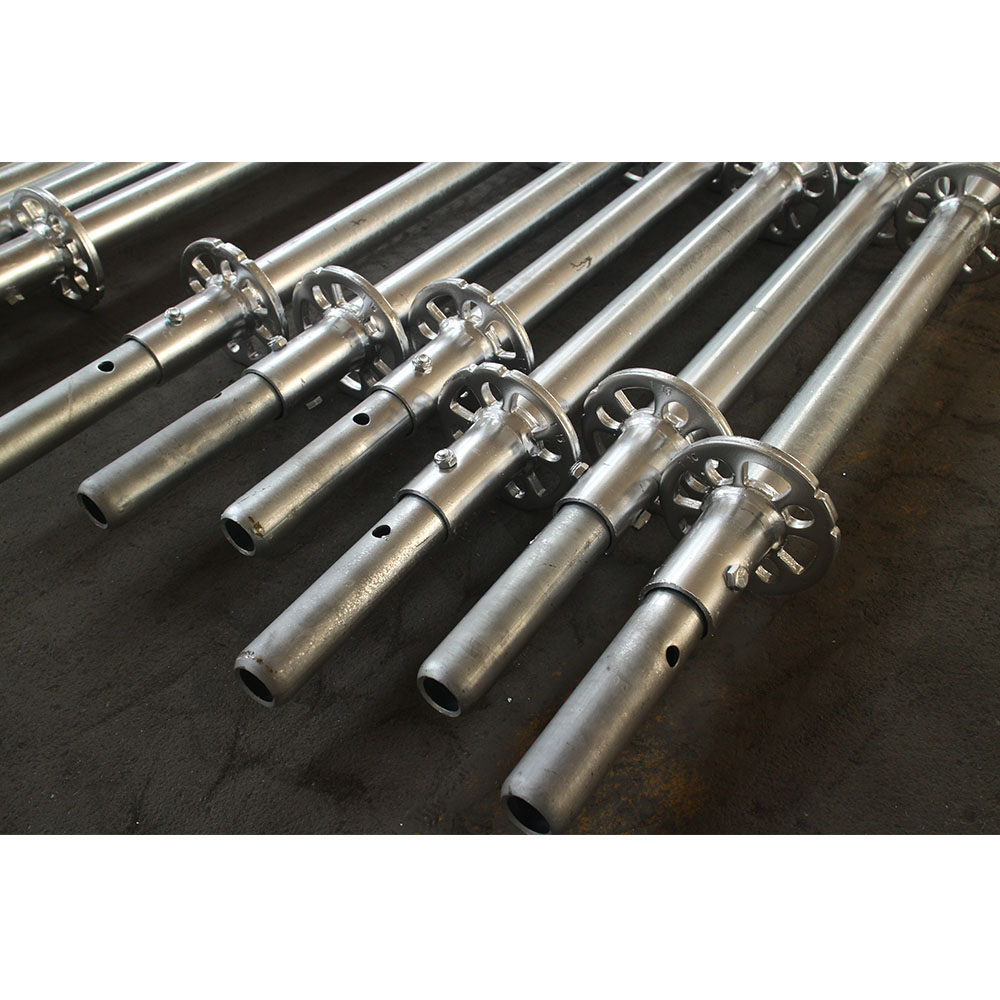

The spigot could be connected with the main tube by stamping and bolts.
Our multidirectioanl scaffolding system gets CE certificate, meet EN74, EN12811 standard, we have exported to USA, Canada, UK, Greece, Sweden,Australia, Colombia, Chile, Peru, etc.
