Cuplock Scaffolding System
Home / Products / Cuplock Scaffolding System / Cuplock scaffolding standard

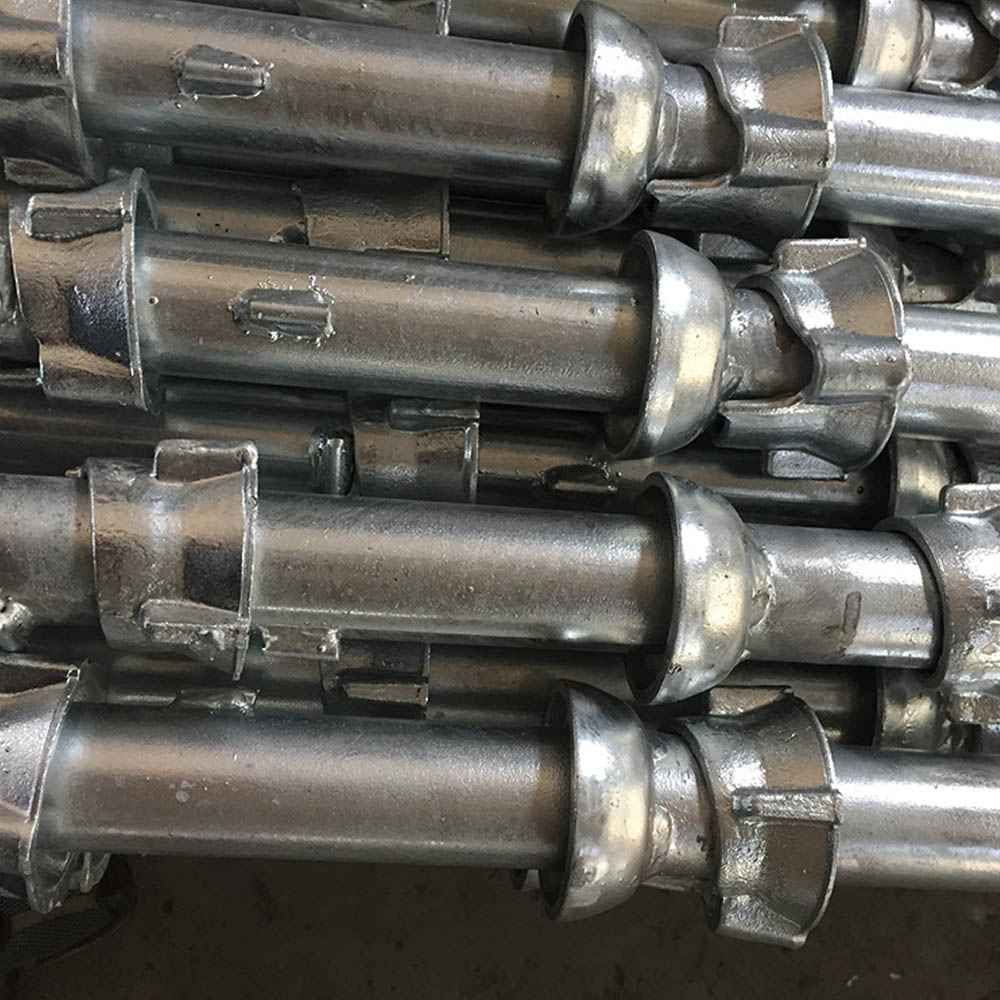

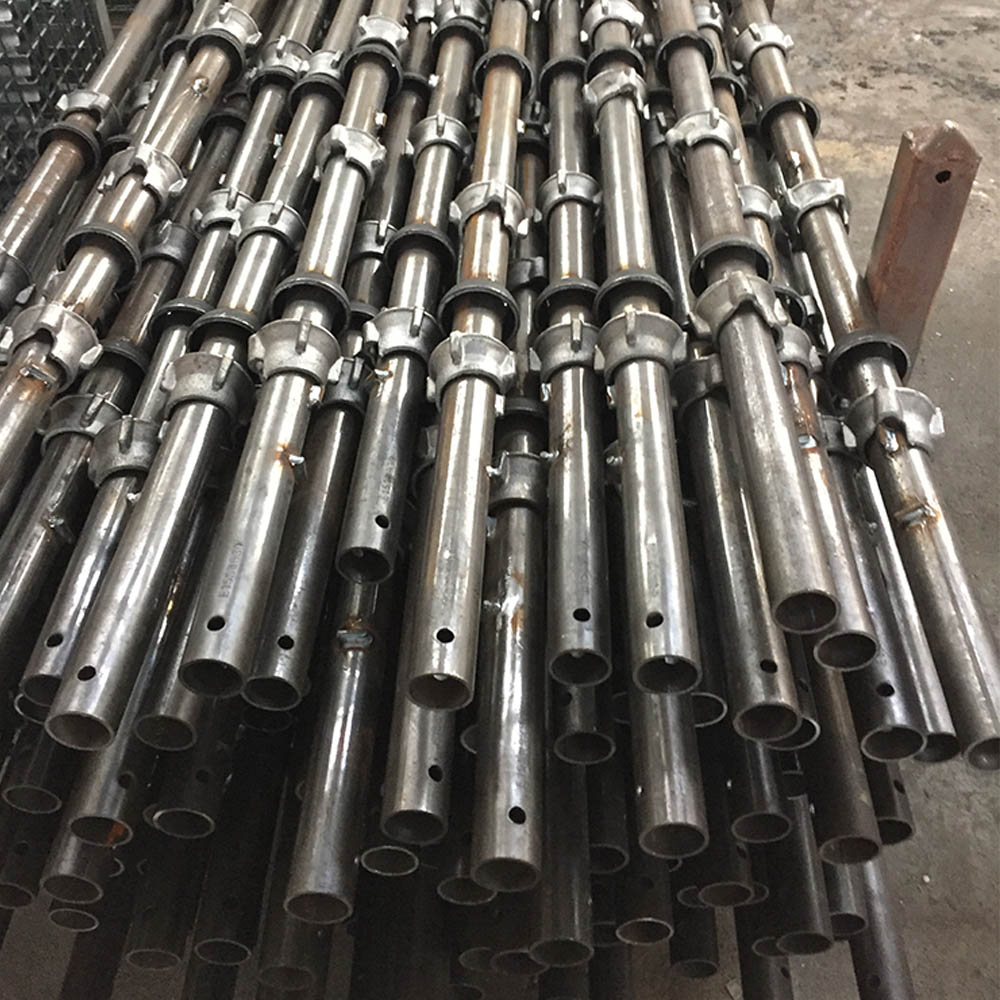

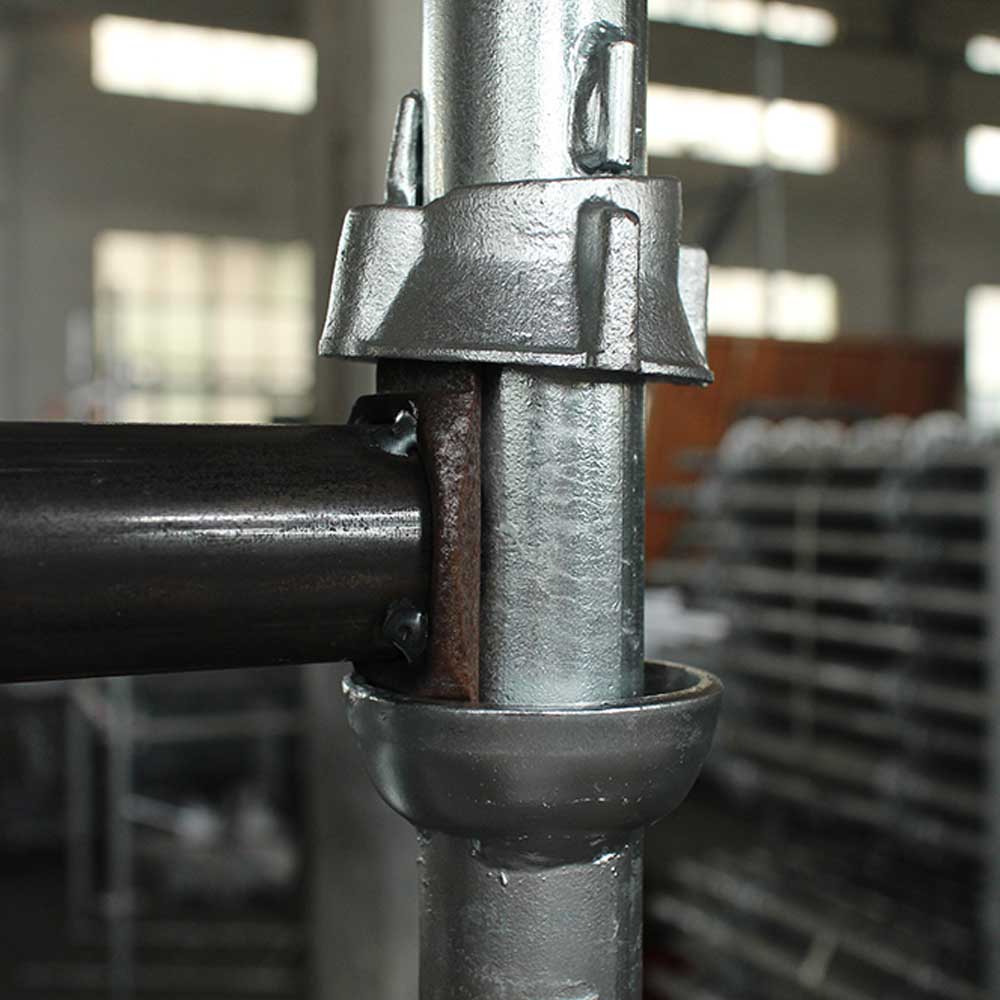

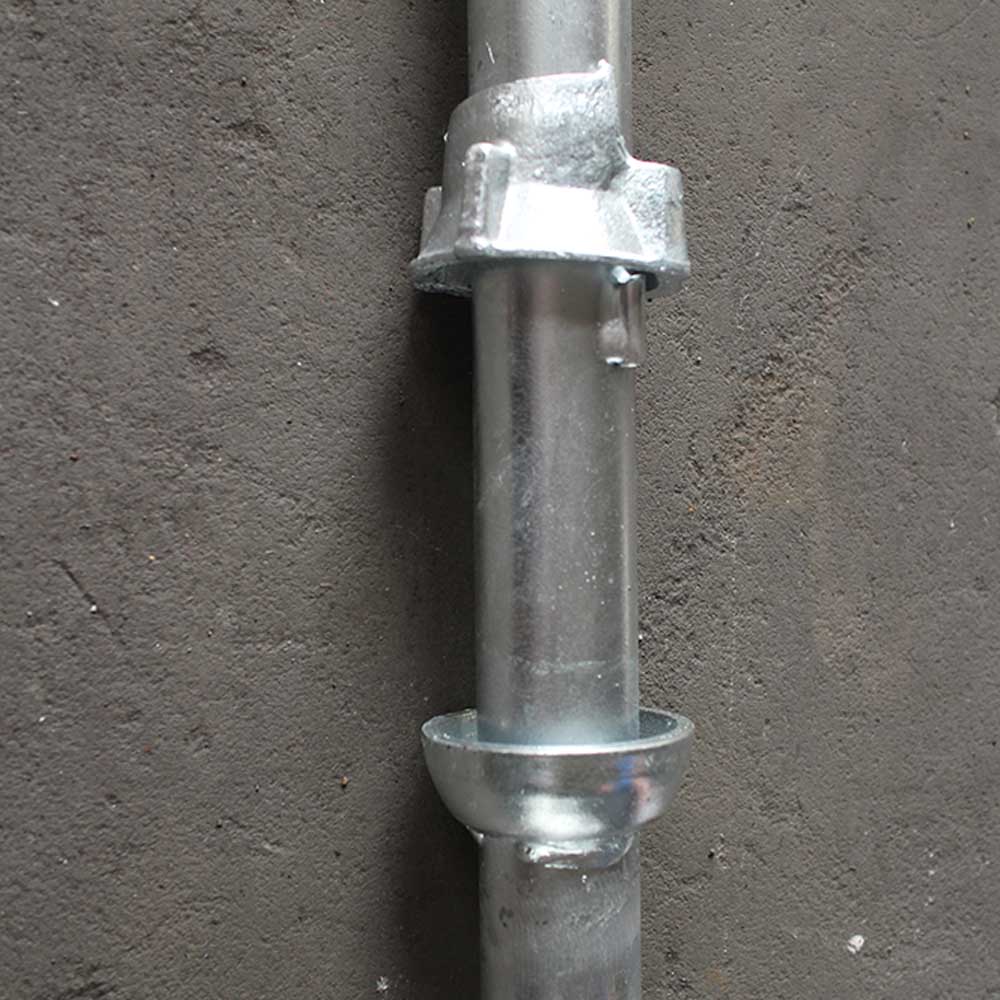

The cuplock standard features two top and bottom cups at an interval of 0.5m. These systems are quickly and easily assembled and disassembled and offer excellent stability. The cuplock standard provides vertical support for the entire scaffold cuplock system. The vertical pole is hot-dip galvanized.
Product Size

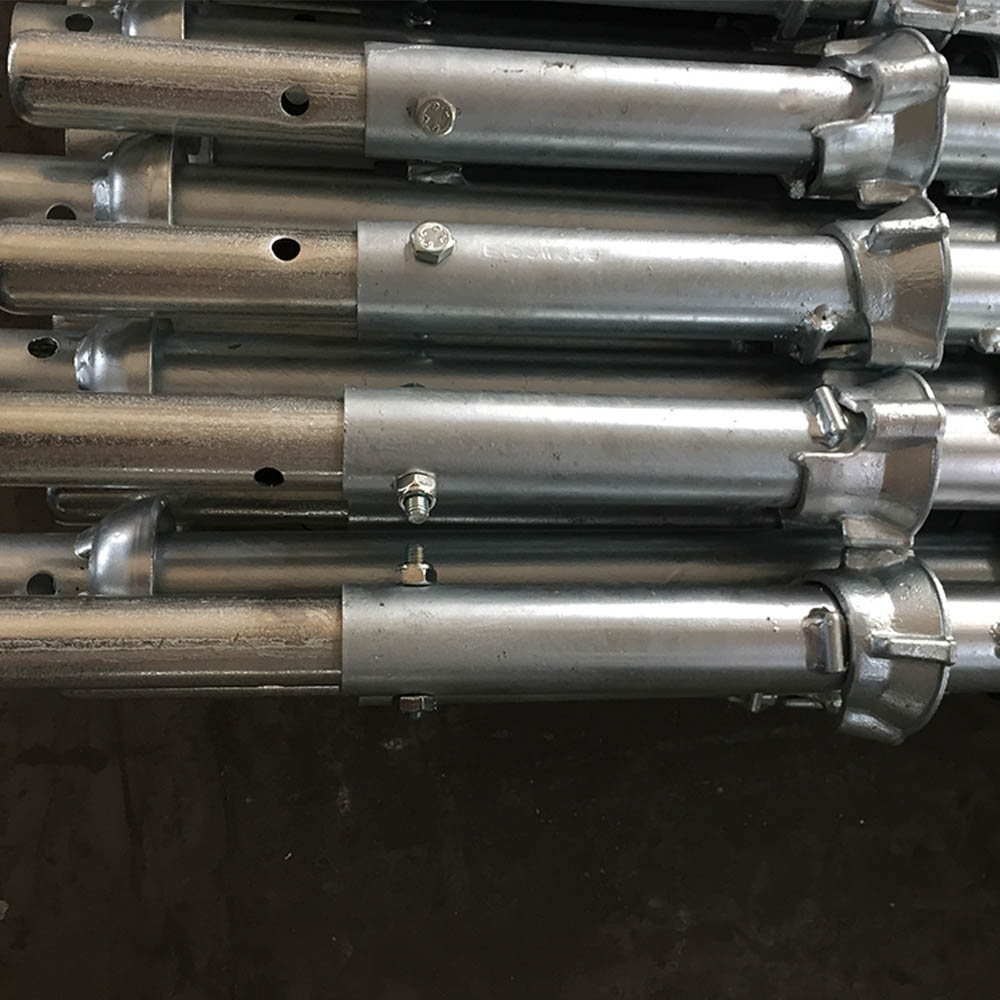

| Standard with bolted spigot | ||||
| Product | Height | Weight | ||
| REF No. | Description | Meters | Feet | KG |
| CLV10 | 1 Cup Vertical | 0.5 | 1'8" | 3.50 |
| CLV33 | 2 Cup Vertical | 1.0 | 3'3" | 6.20 |
| CLV411 | 3 Cup Vertical | 1.5 | 4'11" | 8.70 |
| CLV66 | 4 Cup Vertical | 2.0 | 6'6" | 11.40 |
| CLV82 | 5 Cup Vertical | 2.5 | 8'2" | 14.20 |
| CLV910 | 6 Cup Vertical | 3.0 | 9'10" | 16.50 |
Product Description
The cuplock standard features two top and bottom cups at an interval of 0.5m. These systems are quickly and easily assembled and disassembled and offer excellent stability. The cuplock standard provides vertical support for the entire scaffold cuplock system. The vertical pole is hot-dip galvanized.
Material: Q345, Q235

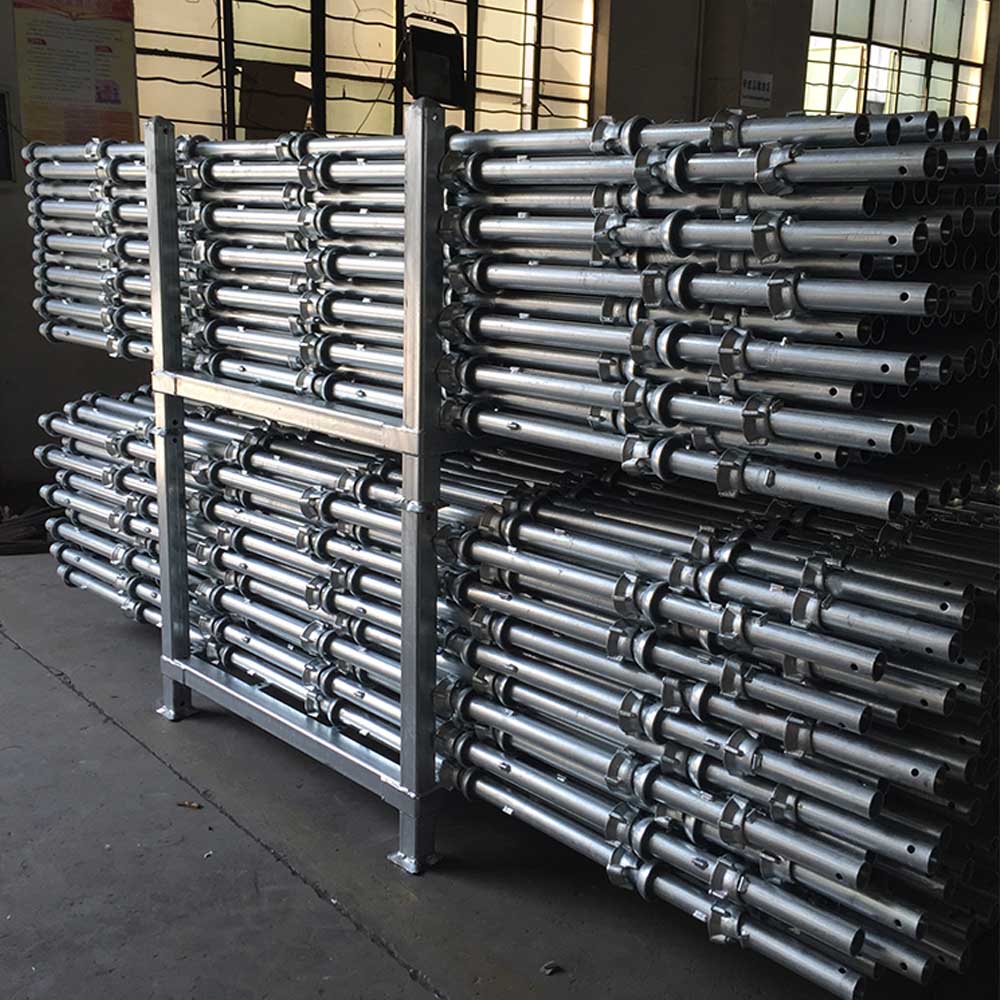

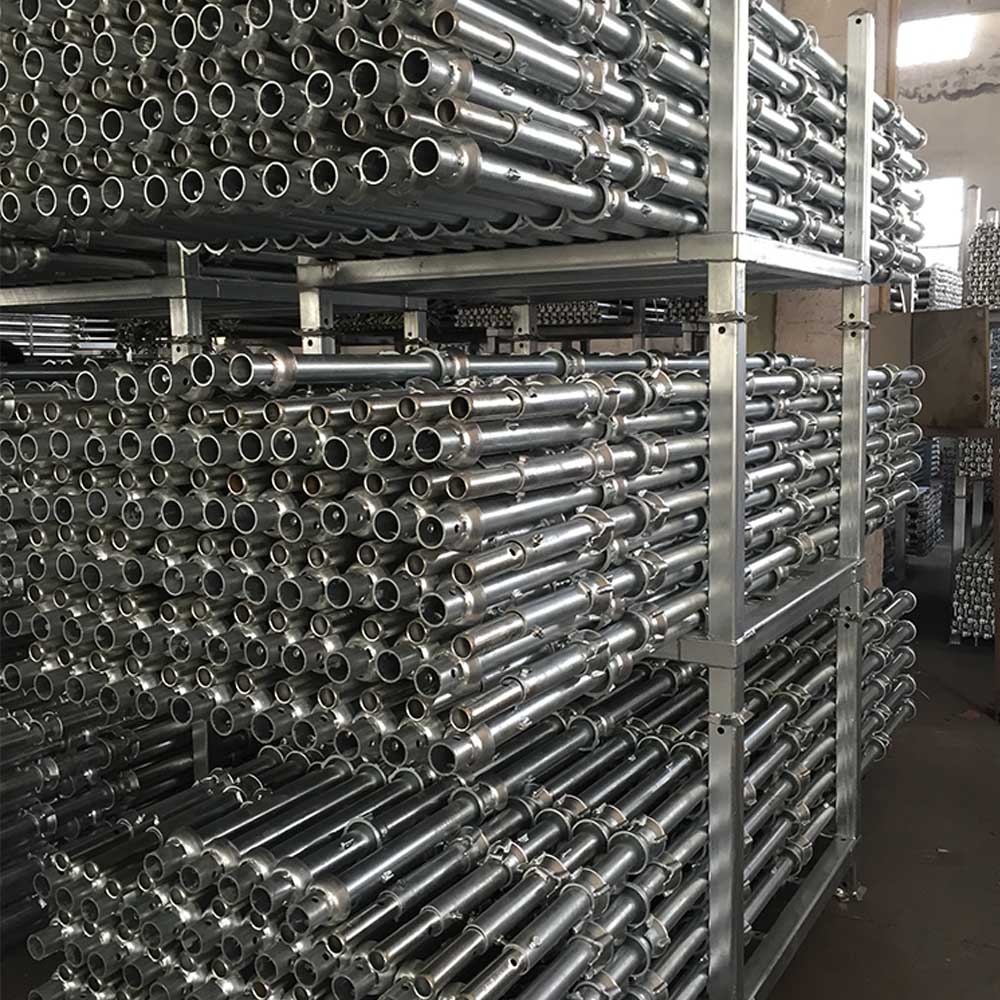

Packing: Steel rack
The cuplock standard top and bottom accessories are made by forged and stamping, to ensure the high quality of completed standards.
