Formwork
The Formwork Tie Rod is a high-tensile steel rod or bar that runs through the entire thickness of a concrete formwork setup. Its primary function is to resist the immense lateral hydraulic pressure exerted by wet concrete, preventing the formwork panels from spreading apart or "blowing out" during the pour.
Technical Specifications (Customizable)
We offer standard and customized specifications to meet different project requirements:
● Material: High-strength carbon steel (Q235 / Q345 / 45# steel)
● Diameter: D12 / D15 / D17 / D20 or customized
● Length: 1m – 6m or customized cutting length
● Surface Treatment: Black, electro-galvanized, hot-dip galvanized
● Thread Type: Metric thread / trapezoidal thread / customized
● Tensile Strength: Up to 500–800 MPa (depending on grade)
All products are manufactured under strict dimensional and mechanical control to ensure compatibility with global formwork systems.
Formwork Tie Rod Description
We supply a complete range of formwork tie rod solutions designed to ensure structural stability, accurate alignment, and safe load transfer during concrete pouring.
WUXI DYNAST METAL PRODUCT CO. LTD is a professional manufacturer and global supplier of formwork tie rod systems and concrete formwork accessories. Our tie rod systems are engineered for high-strength concrete forming applications, providing reliable performance in wall, column, and slab construction projects.
A formwork tie rod system is a critical component used in concrete formwork construction. It works by connecting opposite formwork panels together and resisting the lateral pressure of fresh concrete during pouring and curing.
A typical tie rod system includes:
● Tie rods (high-strength threaded steel rods)

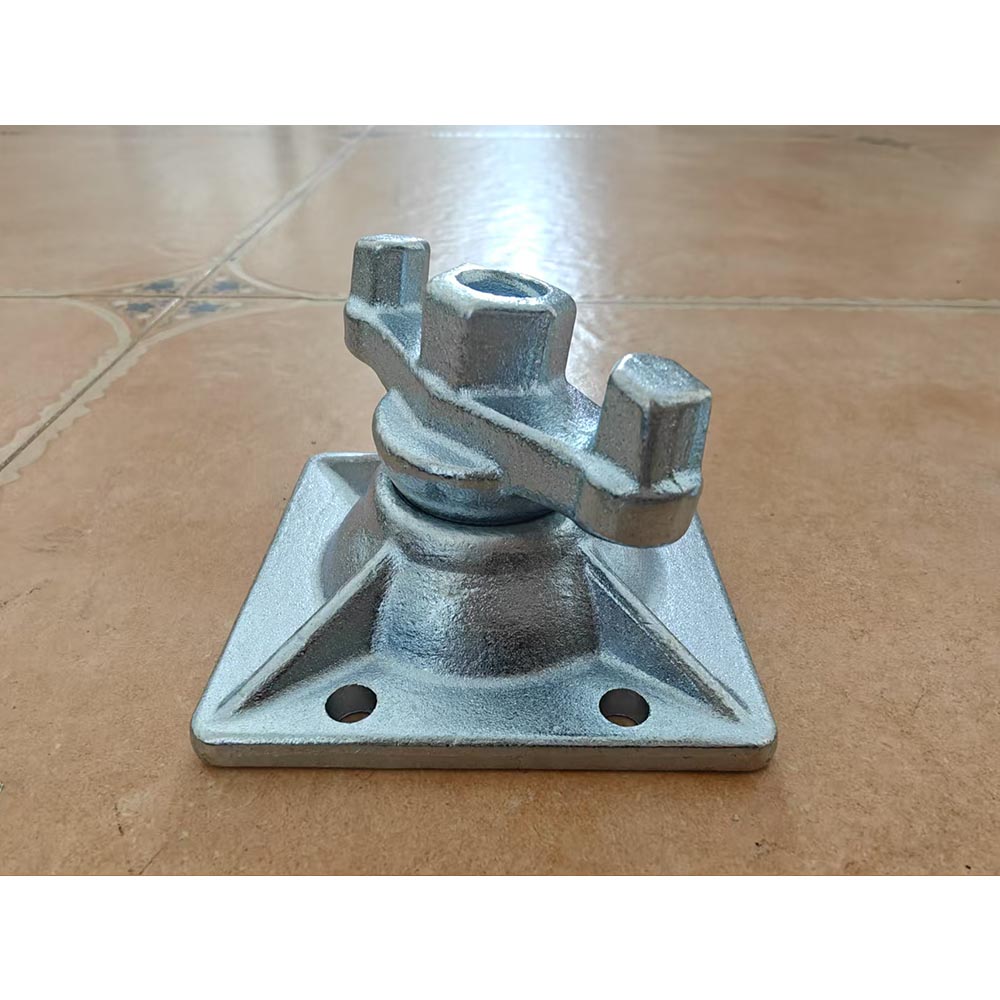

● Wing nuts / hex nuts
● Water stoppers (if required)
● Washer plates
● Anchor nuts and accessories
Together, these components form a stable tension system that keeps formwork panels firmly in position.
The Formwork Tie Rod is a high-tensile steel rod or bar that runs through the entire thickness of a concrete formwork setup. Its primary function is to resist the immense lateral hydraulic pressure exerted by wet concrete, preventing the formwork panels from spreading apart or "blowing out" during the pour.
Structural Integrity: Essential for maintaining the dimensional accuracy and safety of the formwork structure.
Versatility: Available in various lengths and diameters to suit different wall thicknesses and height requirements.
Cost Efficiency: Reusable tie rods offer significant long-term savings for contractors compared to single-use systems.
Material：Steel
Finished: Plain
Diameter: 15/17mm
Length: 1m-6m
Packing: Bundle
Delivery time: 30 days
Suitable for general construction projects such as residential and commercial buildings.
Designed for heavy-duty applications including bridges, retaining walls, and high-rise core walls.
Integrated water-stop plate prevents leakage, ideal for basements, tunnels, and water-retaining structures.
Flexible cutting and adjustment for different formwork dimensions on site.

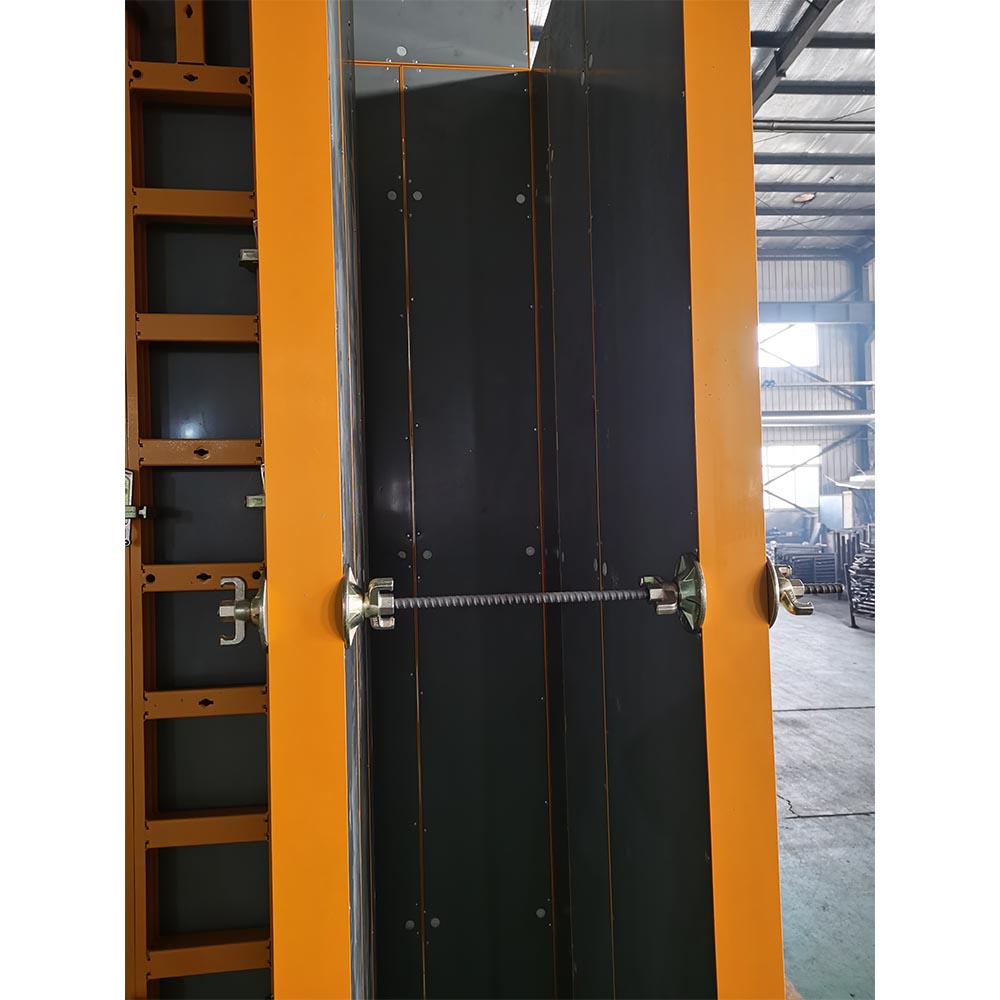

During construction:
Tie rods pass through formwork panels
Wing nuts and washer plates secure both ends
Tightening creates uniform clamping force
Concrete is poured into the formwork cavity
System resists lateral pressure until curing
Components are removed and reused after dismantling
This ensures accurate wall thickness and structural integrity.
Contact WUXI DYNAST METAL PRODUCT CO. LTD for technical specifications, pricing, and customized solutions. We provide high-strength, durable, and cost-effective formwork accessories for global construction projects.
